Mega-Scale Structural Steel & Cryogenic Pipe Racks for World-Class LNG Expansion Project in Ras Laffan, Qatar
Controlled dimensional deviations within 1.5mm across complex multi-tier modules using 3D laser tracking and TEKLA modeling, guaranteeing 100% bolt-hole alignment without field reaming.
Project Overview

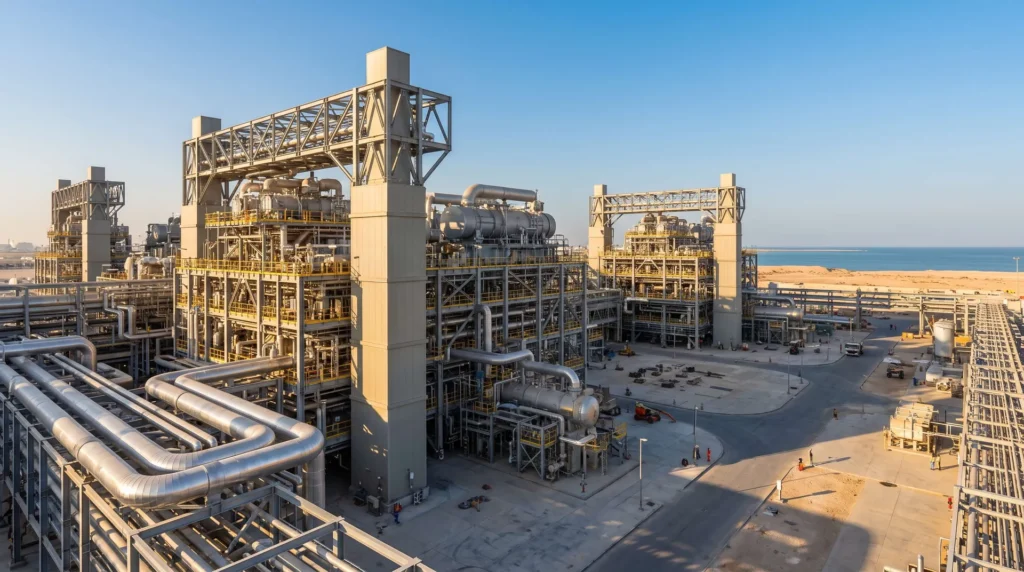

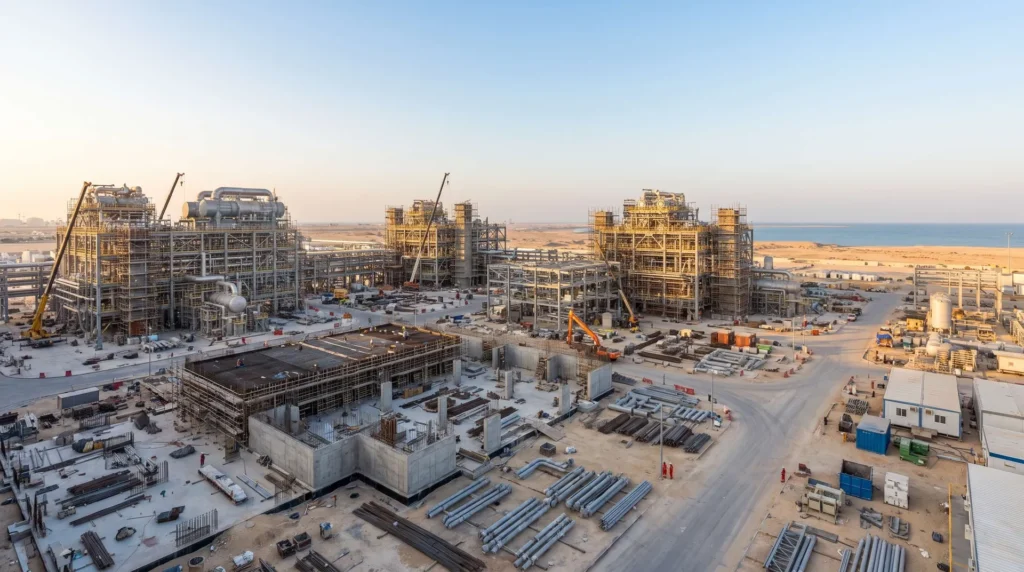

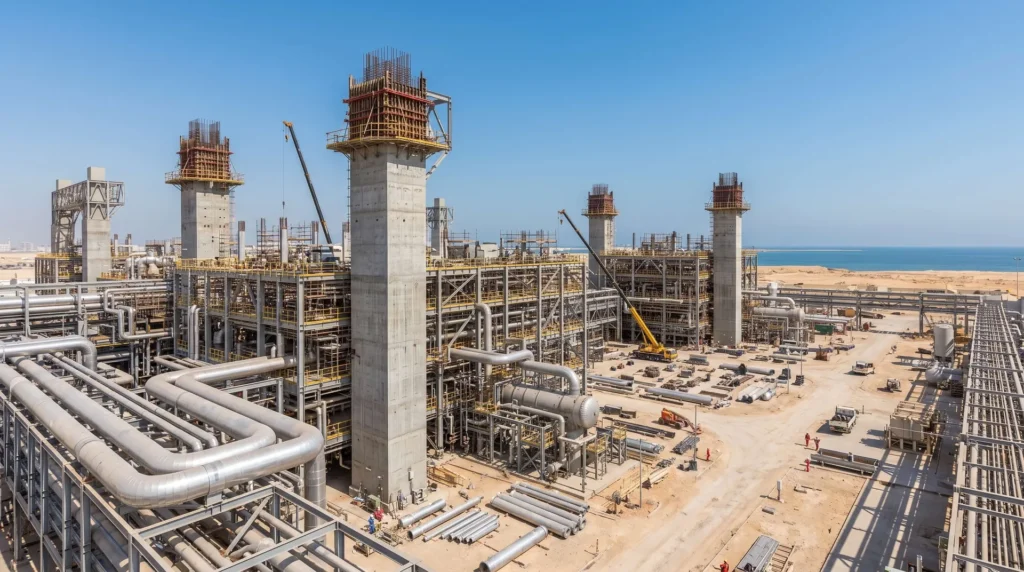

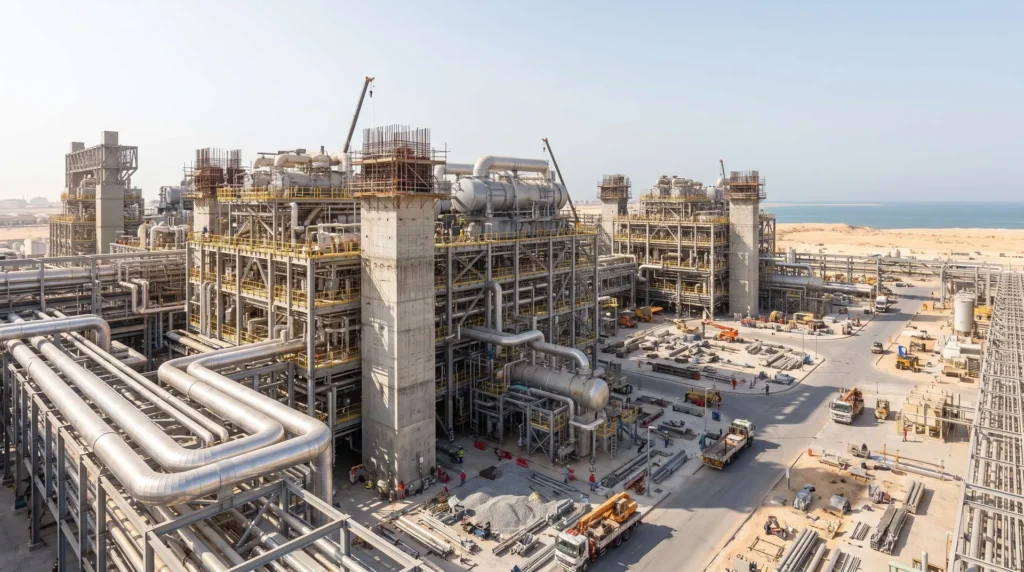

Located in Ras Laffan Industrial City, Qatar, along the Persian Gulf coast, this mega-scale LNG export terminal forms the backbone of global clean energy supply. Operating within one of the most punishing industrial environments on Earth, the steel structures must endure scorching desert heat exceeding +50°C, aggressive coastal salt-fog (ISO 12944 C5-M marine corrosivity), continuous high-velocity abrasive sandstorms, and severe thermal-cycling vibrations induced by cryogenic refrigeration pipelines (-162°C). International energy conglomerates and EPC mega-contractors enforce uncompromising QA/QC mandates governed by AISC 360, AWS D1.1, ASME B31.3, and stringent QP/Qatargas engineering specifications.
Facing strict zero-tolerance criteria on dimensional tolerances and coating durability where multiple fabricators struggled, Shijie Heavy Industry delivered high-precision multi-tier pipe rack structures, compressor table-top structural supports, and heavy-duty box column frameworks. Utilizing automated robotic submerged-arc welding, strict trial pre-assemblies, and high-build marine-grade inorganic zinc/polyurethane coating systems, Shijie achieved a 100% first-pass NDT rate (UT/RT) and flawless field bolting without a single torch cut or reaming. This ensured complete structural integrity and expedited the mechanical completion of this mega-train liquefaction facility ahead of schedule.
| Location | Ras Laffan Industrial City, Qatar (Persian Gulf) |
| Industry | Mega LNG Liquefaction Trains & Export Terminal |

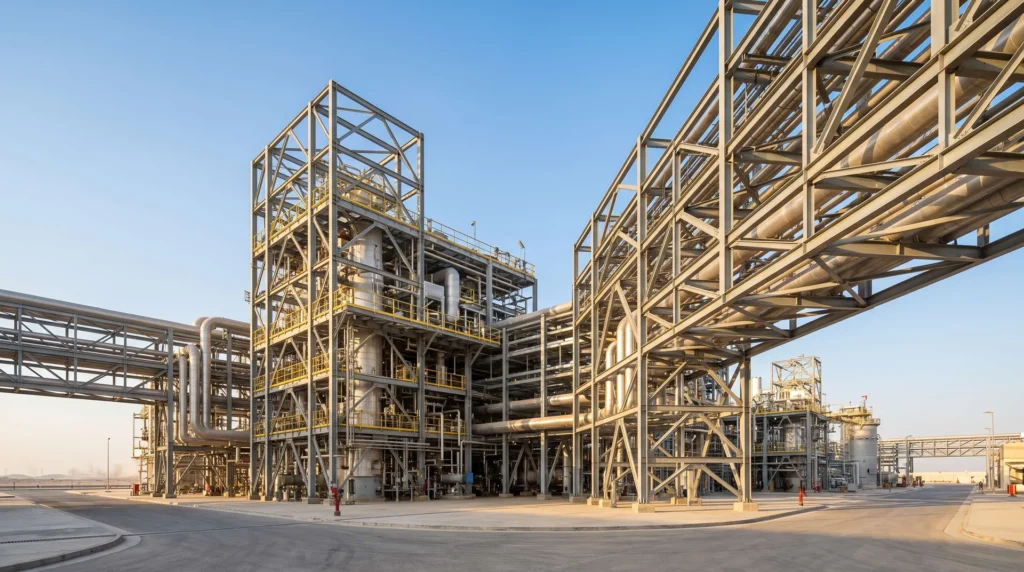

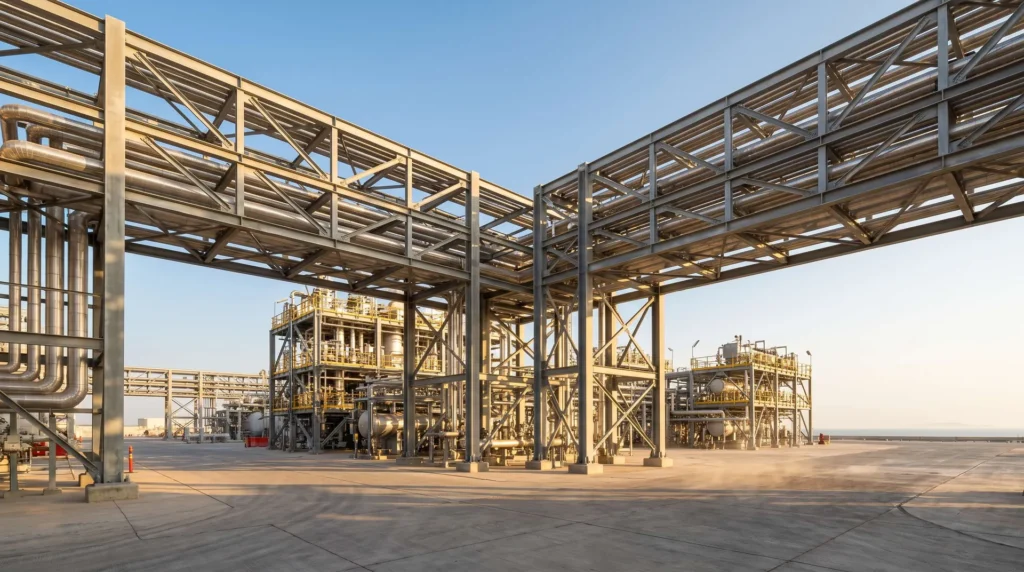

| Structural System | Multi-Tier Cryogenic Pipe Racks & Heavy Box Columns |
| Design Codes | AISC 360, AWS D1.1, ASME Sec. IX, QP/Qatargas Specs |
| Environment | +50°C desert heat, C5-M marine salinity & sand abrasion |
| Coating System | Inorganic Zinc-Rich Primer + High-Build Epoxy + Polyurethane |
| NDT & Welding | 100% CJP Welds; 100% UT + RT/PAUT passed on first try |
| Pre-assembly | Shop 3D laser-scanned trial assembly, clearance <1.5mm |
| Documentation | Full EN 10204 3.1 MTRs with Charpy V-notch impact verification |
| Outcome | Zero on-site modifications, bolted assembly 2 weeks ahead |
LNG-Grade Precision Engineering
Controlled dimensional deviations within 1.5mm across complex multi-tier modules using 3D laser tracking and TEKLA modeling, guaranteeing 100% bolt-hole alignment without field reaming.
Superior C5-M Harsh Marine Protection
Applied strict Sa 2.5 grit-blasting with high-build inorganic zinc and aliphatic polyurethane systems, resisting 50°C heat, high humidity, aggressive salt-fog, and continuous abrasive sand impact.
Vibration & Cryogenic Load Mastery
Heavy box columns and cross-braced portal frames engineered to absorb multi-directional pipe surge loads, machine resonance, and extreme thermal contractions down to -162°C.
100% First-Pass Dual NDT
Certified automated submerged arc welding (SAW) delivered zero-defect, complete joint penetration (CJP) weldments, fully vetted by independent third-party verification (BV / DNV).
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
Extreme Persian Gulf marine salinity and abrasive sandstorms rapidly degrade conventional protective coatings.
Executed high-durability coating specs (Sa 2.5 blast profile 50-75µm, total DFT ≥ 300 µm) using robotic airless sprayers; post-cured under controlled humidity with rounded edges on all steel flanges.
High-density pipelines require extremely tight multi-tier rack clearances; any node distortion halts piping installation.
Carried out multi-stage shop pre-assembly with digital 3D photogrammetry scanning; utilized symmetrical balance welding and rigid jigging to limit column sweep and camber deviations within ± 1.0mm.
Unforgiving QP/Qatargas engineering audit with total scrutiny on traceability of raw materials and cryogenic consumables.
Sourced exclusively from top-tier state-owned mills with EN 10204 3.1 MTRs and third-party Lloyd’s/DNV endorsements; deep hard-stamped heat numbers with digital QR tracking for instant mill verification.
Building world-scale LNG infrastructure in the Middle East means facing the harshest environment imaginable: blistering +50°C temperatures, corrosive salt-laden gulf winds, and the most unforgiving third-party inspection regime in the global oil & gas industry. The structural steel and pipe racks we required were exceptionally complex, designed to carry heavy cryogenic pipelines where even a 2mm misalignment could halt millions of dollars worth of specialized piping work.
Shijie Heavy Industry outperformed our highest expectations. Their fabrication precision was nothing short of military-grade. Across thousands of tons of heavy box columns and multi-tier modules, our field erection crew reported zero site cutting, zero re-drilling, and 100% bolt-hole coincidence. Furthermore, their 100% full-penetration welds passed mandatory ultrasonic and radiographic inspections on the very first try without a single weld repair. Their meticulous EN 10204 3.1 dossiers and C5-M coating finishes cleared our strict TPI audits seamlessly. Shijie is a benchmark partner for mission-critical heavy industrial steel projects.
