Philippines Free-Form Commercial Complex: Typhoon-Resistant Organic Steel Canopy and BIM Precision
Leveraging 3D BIM, every unique curved tubular member was digitally mapped, ensuring flawless alignment during complex field assembly.
Project Overview

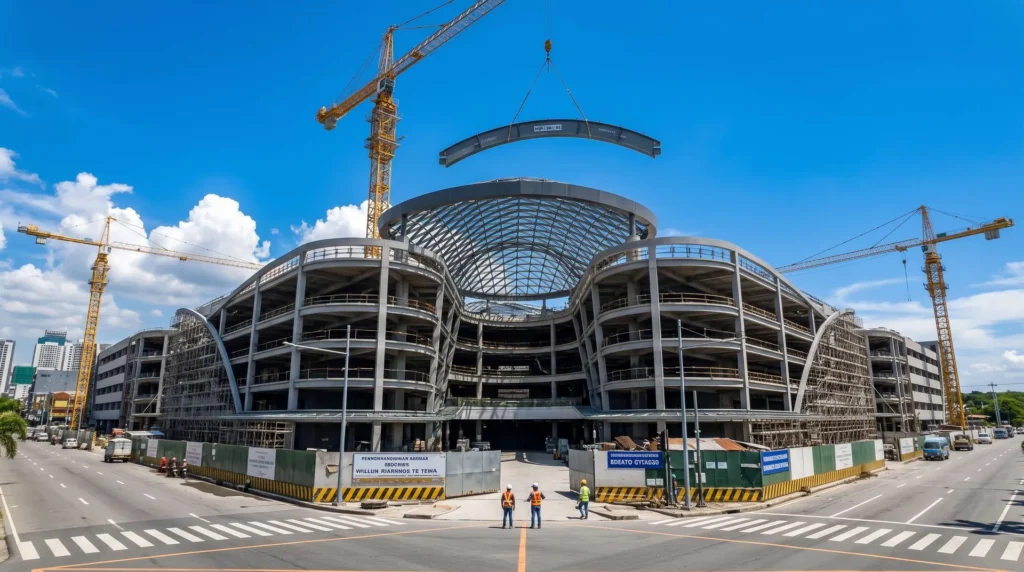

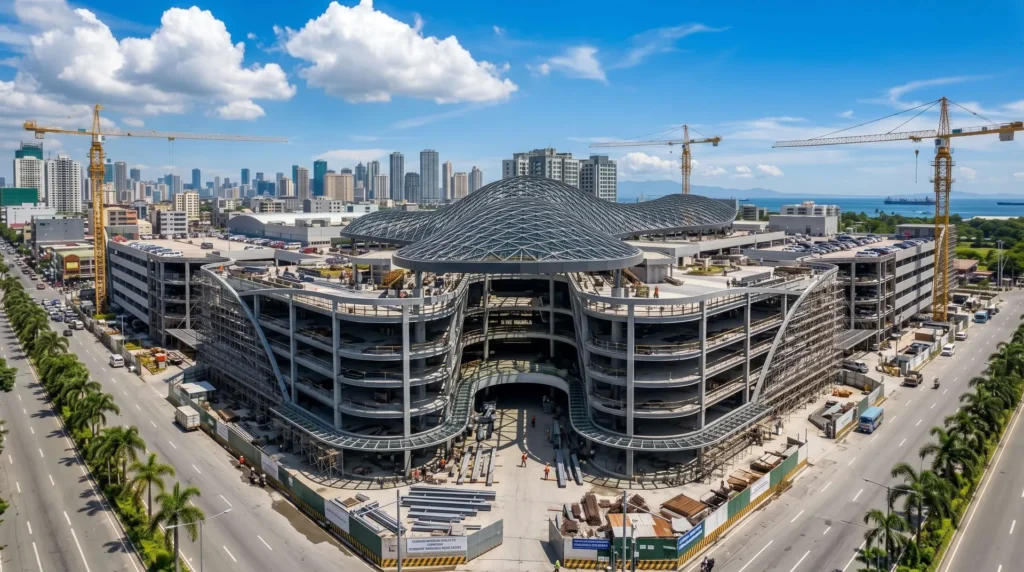

Located in Manila, this 120,000 sqm commercial complex redefines retail with a breathtaking free-form organic steel canopy. Constructing irregular curved structures in a region plagued by super typhoons and seismic activity is an engineering nightmare. Developers fear cost overruns from on-site structural mismatches and the risk of the canopy buckling under 250 km/h winds or leaking during monsoons. Shijie Heavy Industry eradicated these anxieties through absolute digital precision. Using LOD 500 parametric BIM and CNC fabrication, we manufactured thousands of unique spatial nodes. This enabled seamless virtual pre-assembly. On-site, the intricate steel exoskeleton locked together without a single field modification. Engineered with high-ductility cast steel nodes to absorb seismic shocks and an aerodynamic profile to deflect extreme typhoon forces, the structure guarantees safety. Delivering the canopy 40 days early, we provided absolute peace of mind.
| Location | Metro Manila, Philippines |
| Application | Free-Form Commercial Mall |
| Scale | 120,000 sqm Total Floor Area |
| Structure | Spatial Grid & Curved Trusses |
| Wind Rating | Withstands 250 km/h Typhoons |
| Seismic | Zone 4 High-Ductility Resistance |
| Geometry | LOD 500 3D BIM Integration |
| Fabrication | CNC Multi-Axis Bending |
| Waterproofing | Flexible Curved Drainage |
| Delivery | Framework Finished 40 Days Early |
Parametric Digital Precision
Leveraging 3D BIM, every unique curved tubular member was digitally mapped, ensuring flawless alignment during complex field assembly.
Typhoon Aerodynamics
The organic curvature was subjected to wind-tunnel simulations, allowing it to naturally deflect devastating 250 km/h coastal wind loads.
Seismic Dissipation
The grid utilizes high-strength cast steel nodes and high-ductility connections, safely absorbing kinetic energy to protect the facade during earthquakes.
Accelerated Erection

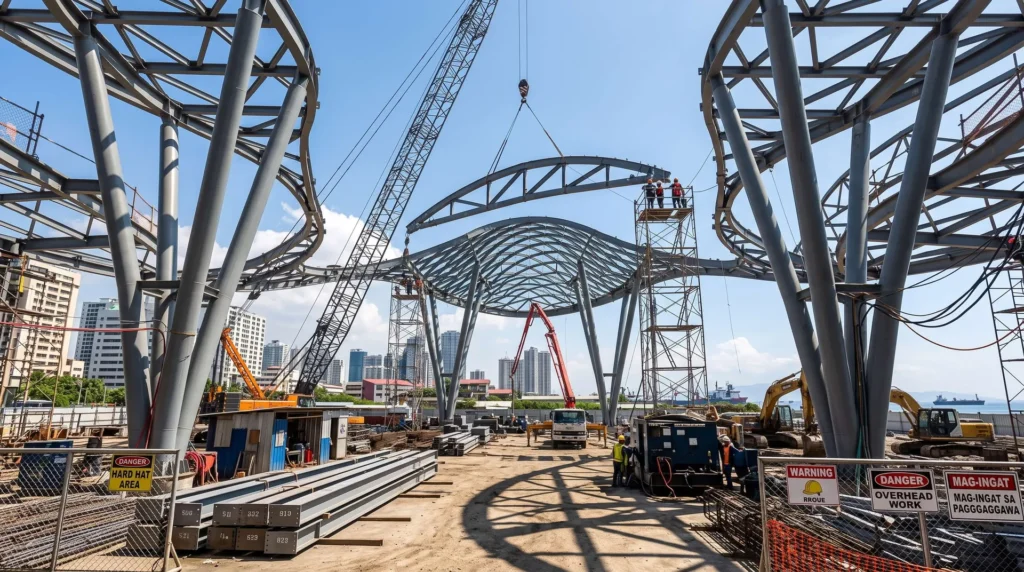

Relying on factory virtual pre-assembly and CNC fabrication, on-site trial-and-error was eradicated, accelerating the roof topping-out by 40 days.
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
Irregular curved geometry creates unique components, making on-site mismatches a high-probability disaster.
CNC multi-axis fabrication paired with 3D virtual pre-assembly guaranteed every piece fit perfectly, ensuring zero modifications.
Typhoons and monsoons threaten to cause wind uplift and severe water leakage through the complex curved grid.
Aerodynamic structural profiling eliminated wind pockets, while an integrated flexible sub-drainage system prevented water ingress.
Executing a free-form organic design in a typhoon and seismic zone is a developer's nightmare. Traditional fabricators often fail to deliver complex curves accurately. Shijie provided absolute certainty. Their BIM precision was breathtaking. Thousands of uniquely curved steel pipes fit together seamlessly like a flawless puzzle. We didn't make a single forced modification. The canopy survived a massive coastal storm weeks after completion without a single leak. Finishing the roof 40 days early transformed a high-risk vision into a highly profitable reality.
