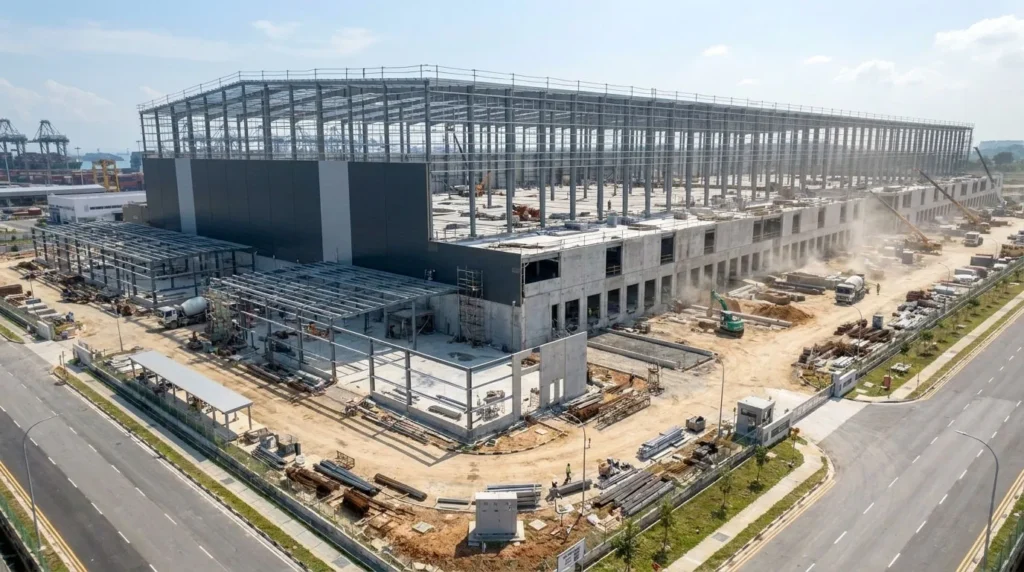

40m Monolithic Rack-Supported ASRS Hub in Singapore: Sub-Millimeter Stacker Rail Plumbness and Fast-Track BCA-Compliant Turnkey Erection

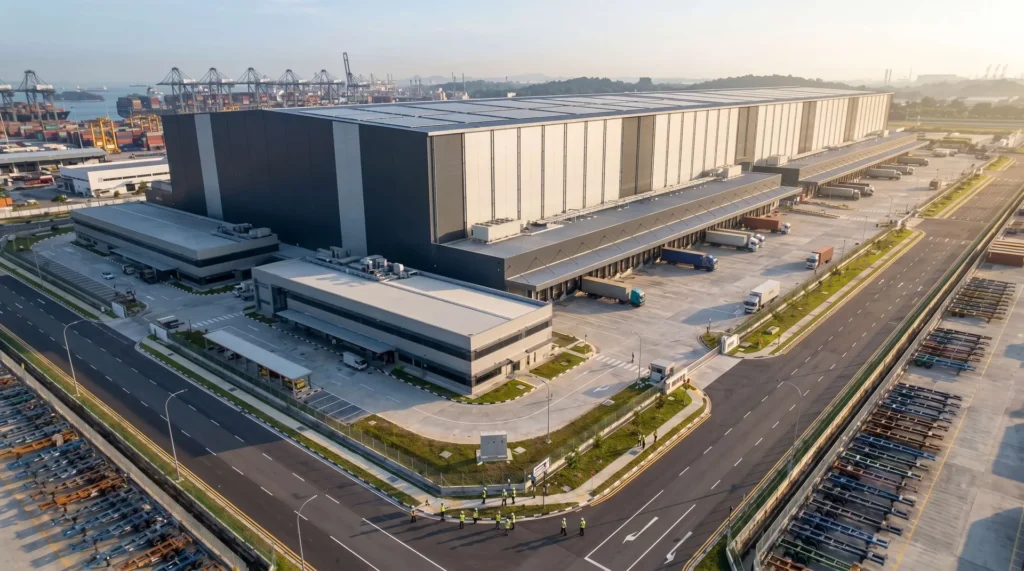

Located in Singapore's western maritime and logistics corridor, this mega Automated Storage and Retrieval System (ASRS) hub represents the pinnacle of high-density supply chain infrastructure. Soaring 40 meters high, the structure utilizes a "rack-supported" structural typology, where the dense high-bay racking directly acts as the primary load-bearing skeleton for the roof and exterior insulated cladding. For the EPC construction director, managing this build under Singapore's regulatory environment was fraught with anxiety. With site labor, crane rentals, and safety supervisor overhead running at brutal hourly rates, any schedule delay bleeds cash.

More critically, high-speed automated stacker cranes (SRMs) travel along the narrow 40-meter-tall aisles at speeds exceeding 240 m/min. If the cumulative plumbness of the steel uprights drifted by even 2 millimeters, the automated cranes would trip safety sensors, jam in the racks, or chew their guide rails, halting millions of dollars in automated logistics throughput. On top of this, Singapore's Building and Construction Authority (BCA) strictly enforces zero-tolerance site safety—any unapproved field cutting, torch reaming, or overhead welding would trigger immediate stop-work orders.

Shijie Heavy Industry delivered an integrated, high-precision engineering solution that eliminated site adjustments entirely. Utilizing 5-axis CNC multi-station beam and tube punching lines, Shijie locked upright bolt-hole tolerances strictly within ± 0.5 mm. Through dynamic finite element modeling, the structural framework was engineered to absorb localized wind gust shears transferred from the building envelope without distorting the internal automated rail alignment. Shipped in phased 40HQ containerized modules with waterproof QR-code traceability matching the site crane radius, all 11,000 tons of structural racking went up 100% bolted. The high-speed stackers cleared commissioning on their very first run, allowing the contractor to hand the facility over for automated commissioning 16 days ahead of schedule.
