58,000 sqm Category-5 Typhoon-Resistant Logistics Hub in the Philippines: 280 km/h Wind-Uplift Engineering and Zero-Leakage Monsoon Proofing

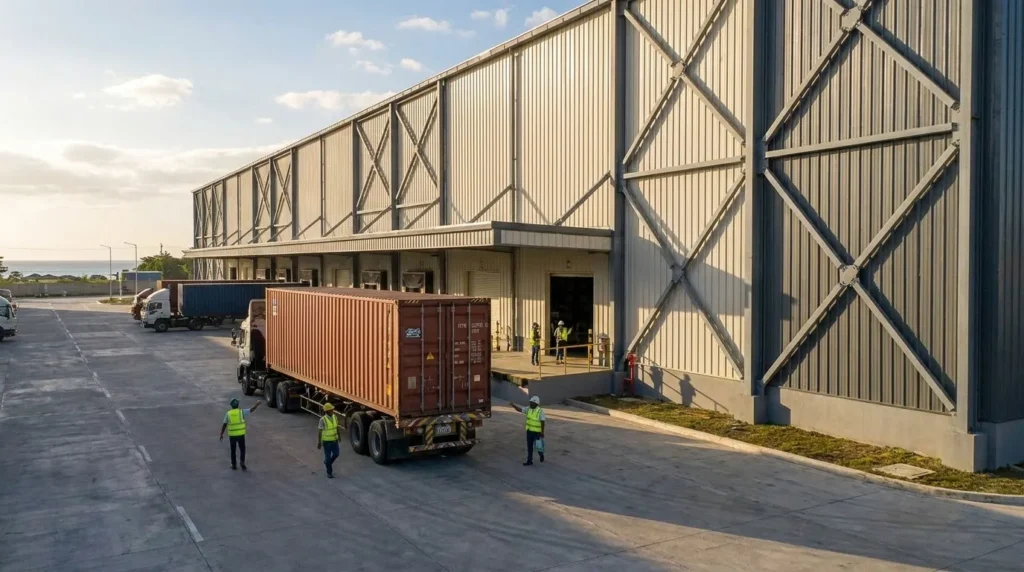

Integrated heavy external tube-truss cross wind bracings and reinforced portal frames with deep baseplate anchors, locking building frame deflection well under tight structural limits during 280 km/h cyclonic gusts.
Project Overview
Situated right along the storm-swept coastal industrial belt of Batangas, Philippines, this multi-span modern logistics park serves as an essential supply-chain interchange for FMCG and containerized transit. For the international EPC project director, structural reliability was literally a life-and-death issue. The Philippine archipelago sits dead-center in the Western Pacific typhoon belt, regularly taking direct hits from Category-5 super typhoons packing sustained gusts upwards of 280 km/h.
The primary psychological and financial nightmare for the client was roof tear-off and torrential water damage. When extreme cyclonic wind forces slam into an expansive, low-slope warehouse, sudden negative pressure (suction) tears standard self-tapping screws right through thin metal decking, stripping the roof bare in seconds. In past local builds, cheap purlins warped, box gutters overflowed under 200 mm/h rain squalls, and millions of dollars in stored bonded cargo were destroyed overnight, leaving general contractors with bankrupting insurance lawsuits. Compounding this, the humid maritime air rapidly attacks scratch-damaged steel, and remote island logistics make sourcing replacement components on-site nearly impossible.

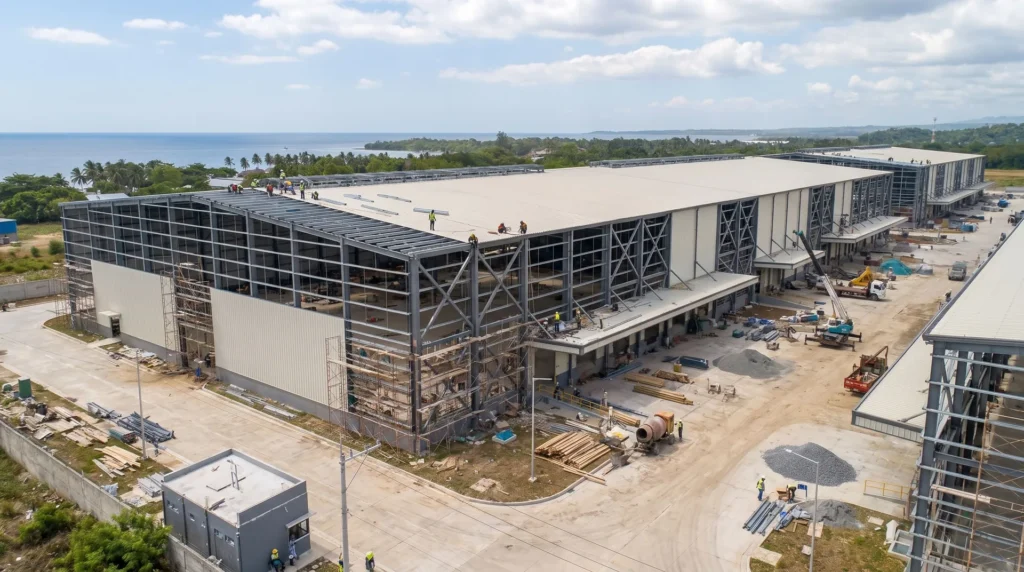

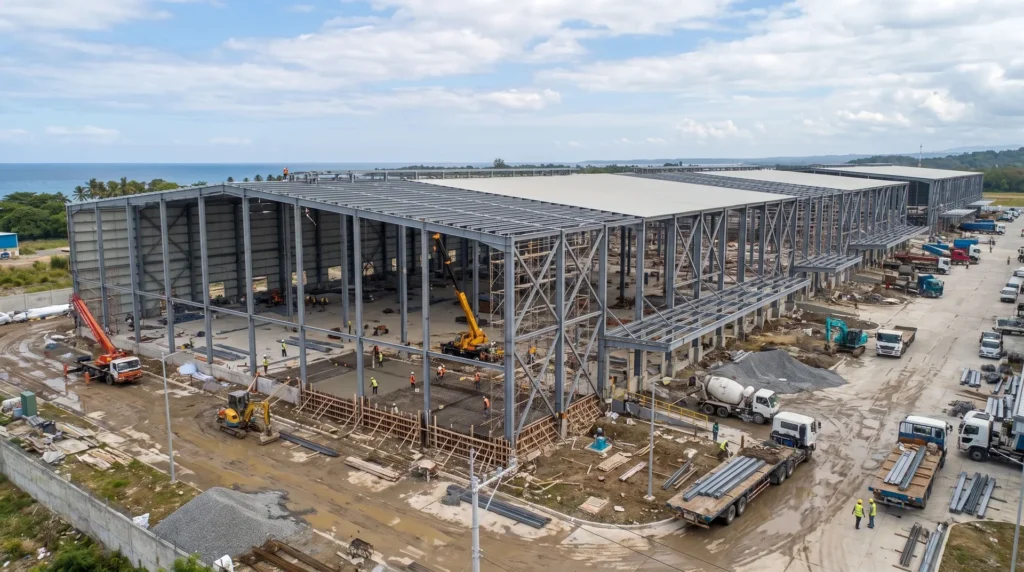

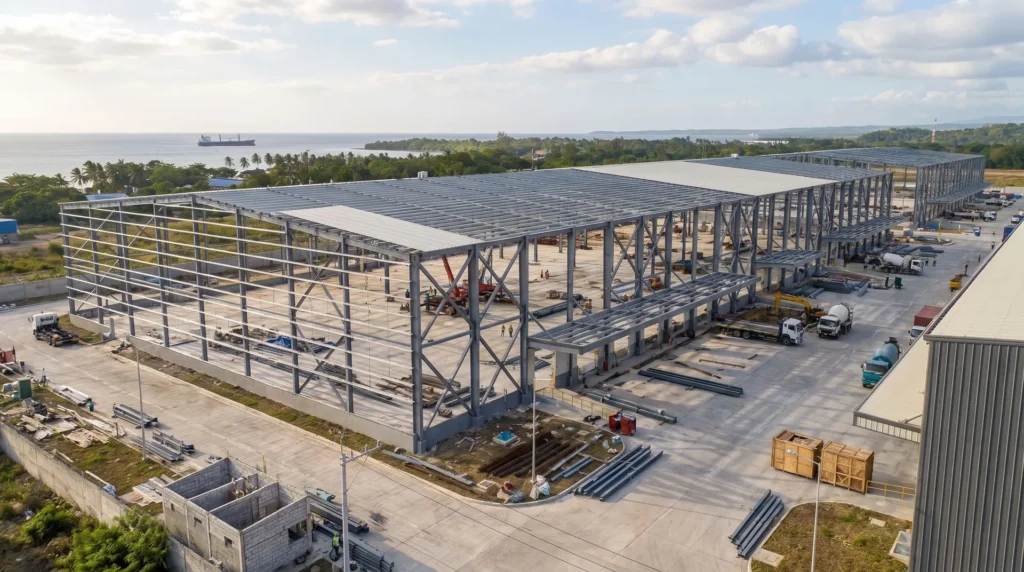

Shijie Heavy Industry engineered a heavy-duty, aerodynamic structural steel envelope system specifically for extreme cyclonic marine zones. Incorporating prominent external diagonal K-and-X wind bracings along the endwalls and reinforced structural portal frames, Shijie locked the entire lateral drift to strict seismic and wind limits. Roof decking was upgraded to continuous 360-degree double-lock standing-seam panels anchored with concealed sliding clips that withstand intense cyclonic uplift without fastener perforations, paired with custom stainless-steel high-capacity continuous box gutters. Fabricated with CNC multi-spindle drilling lines and protected by C5-M marine-grade polyurethane coatings, all 8,600 tons of structural steel were shipped in sequenced, crane-ready sea-fastened bundles. The framing bolted together aloft 100% on the first pass with zero field cuts, completing the facility 23 days ahead of the peak Pacific typhoon season.
| Location | Batangas Coastal Logistics Hub, Philippines |
| Industry | Category-5 Typhoon-Resistant Heavy Logistics Park |
| Scale | 58,000 sqm Complex (~8,600 Tons Structural Steel) |
| Wind Rating | Engineered for 280 km/h Gusts (Category-5 Super Typhoon) |
| Roofing Spec | 360° Double-Lock Standing Seam (Concealed Sliding Clips) |

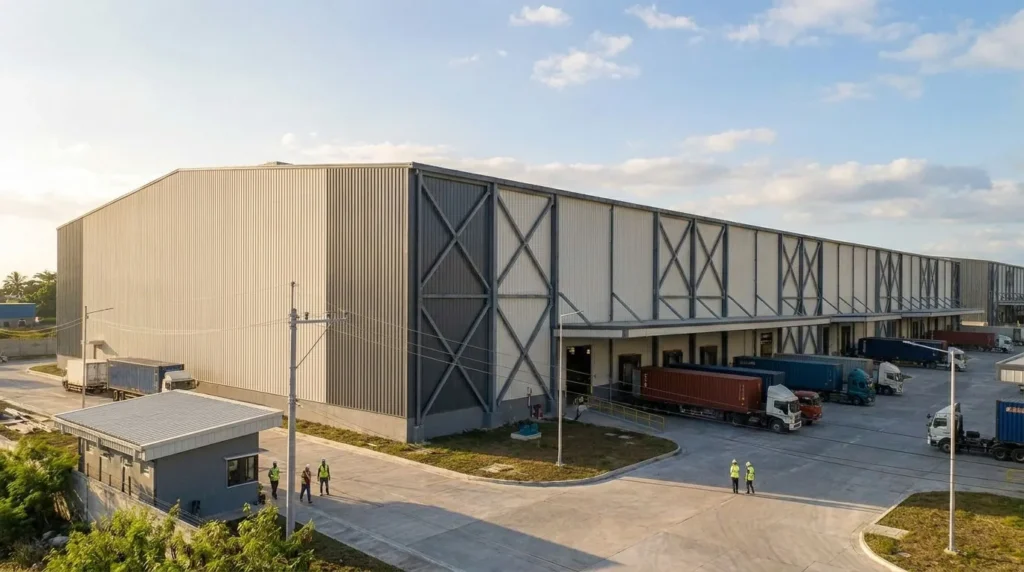

| Bracing System | Heavy Tubular K & Double-X External Storm Wind Bracing |
| Gutter Drainage | Heavy-gauge continuous 304 stainless box gutters (>200mm/h) |
| Coating Spec | ISO 12944 C5-M (Marine-Coastal Heavy Barrier System) |
| Bolted Splices | 100% Pre-Engineered Bolted Connections (0% Field Welding) |
| Schedule Advance | Delivered 23 Days Ahead of Peak Typhoon Season |
Category-5 Typhoon Aerodynamic Resistance
Integrated heavy external tube-truss cross wind bracings and reinforced portal frames with deep baseplate anchors, locking building frame deflection well under tight structural limits during 280 km/h cyclonic gusts.
Zero-Perforation 360° Standing-Seam Roof
Installed continuous roll-formed double-standing seam metal roofing with internal concealed movable sliding clips, eliminating exposed screw holes and preventing panel unzipping during massive negative-pressure uplift.
Monsoon Cloudburst Stainless Gutter System
Engineered custom deep-draw continuous stainless-steel box gutters with multi-point siphonic outlets, ensuring torrential 200 mm/h tropical squalls drain instantly without back-flooding into tenant storage.
C5-M Marine Coastal Protective Barrier
Steel structures were shot-blasted to Sa 2.5 and treated with marine epoxy zinc and UV-resistant aliphatic polyurethane topcoats, resisting aggressive coastal humidity and salt spray for decades without chalking or rust bleed.
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
Category-5 typhoons generate immense uplift suction; roof panels easily tear off at fastener points, destroying goods below.
Upgraded to 360° double-lock standing seam roofing with reinforced sliding clips, locking negative-pressure uplift capacity above 3.8 kN/m².
Tropical monsoons bring intense 200 mm/h downpours; traditional undersized gutters overflow into bonded logistics halls.
Fabricated extra-deep continuous 304 stainless box gutters with welded sump boxes and siphonic downspouts, preventing internal pooling.
Marine salt mist rapidly corrodes scratched framing; damaged field welds aloft create severe rust points in humid island environments.
CNC-drilled all bolted splices in-factory and coated with C5-M marine epoxy-polyurethane, allowing 100% bolted field erection with zero hot work.
On the Philippine coast, a Category-5 typhoon strips cheap roofs bare in minutes. Shijie engineered true resilience: 8,600 tons of heavy steel bolted aloft with zero torch cuts, paired with 360° standing-seam roofing. When a 15-tier typhoon hit right after topping out, our warehouse stood solid as a bunker—bone-dry with zero leaks. Handed over 23 days early. Exceptional engineering.
