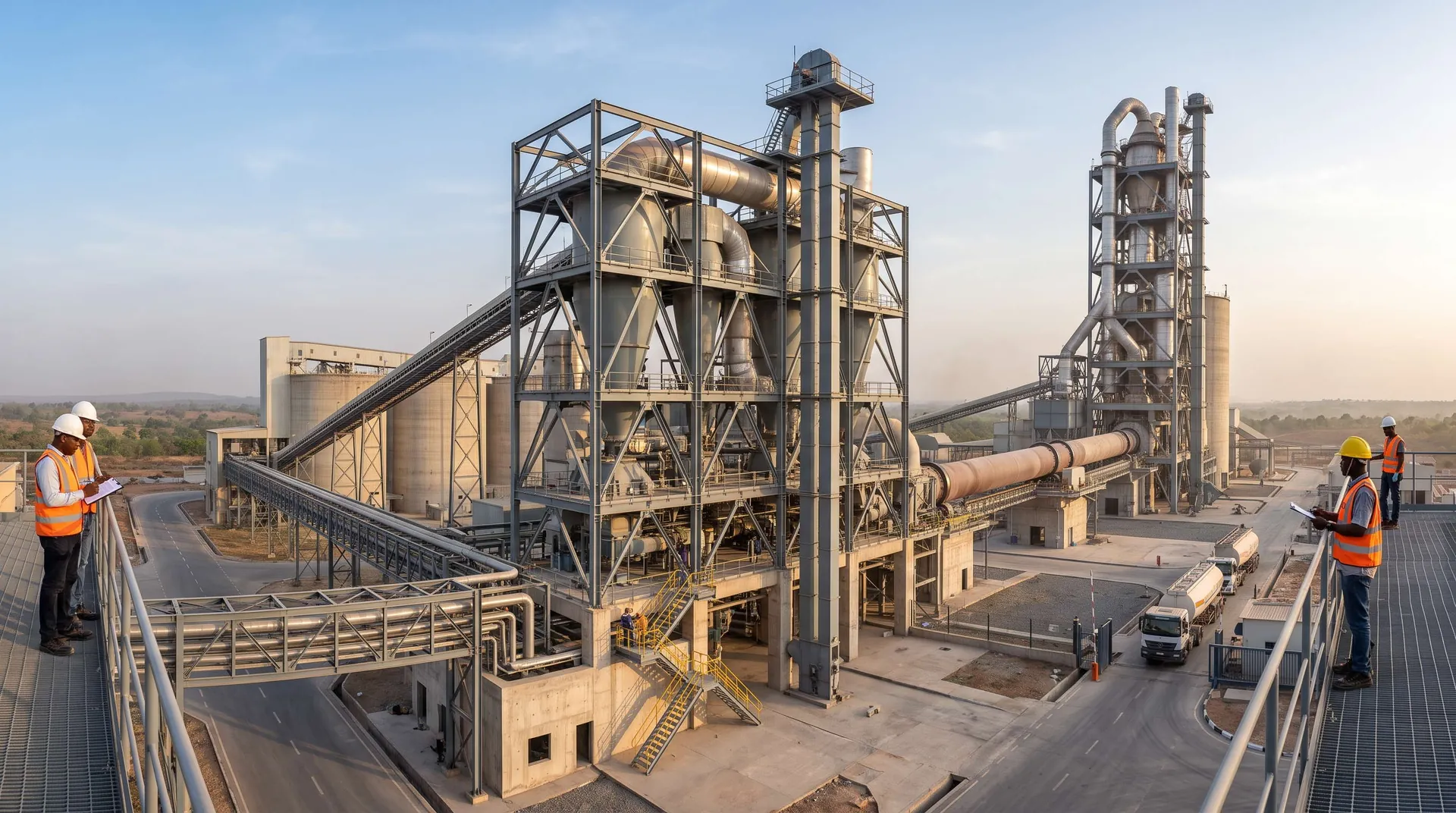

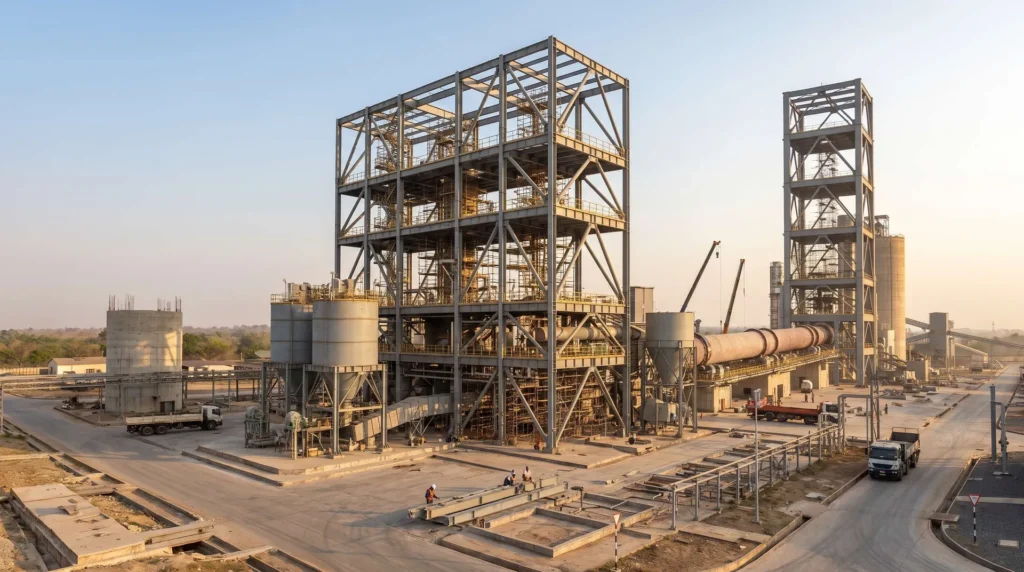

85-Meter Heavy Industrial Preheater Tower in Nigeria: High-Altitude Cyclone Seating, Vibration Damping, and Fast-Track Turnkey Erection
Precision-milled column joints and continuous shop 3D laser-tracker verification ensured beam spacing tolerances remained within ± 2mm, allowing 40-ton cyclone vessels to drop cleanly onto support brackets without binding.
Project Overview

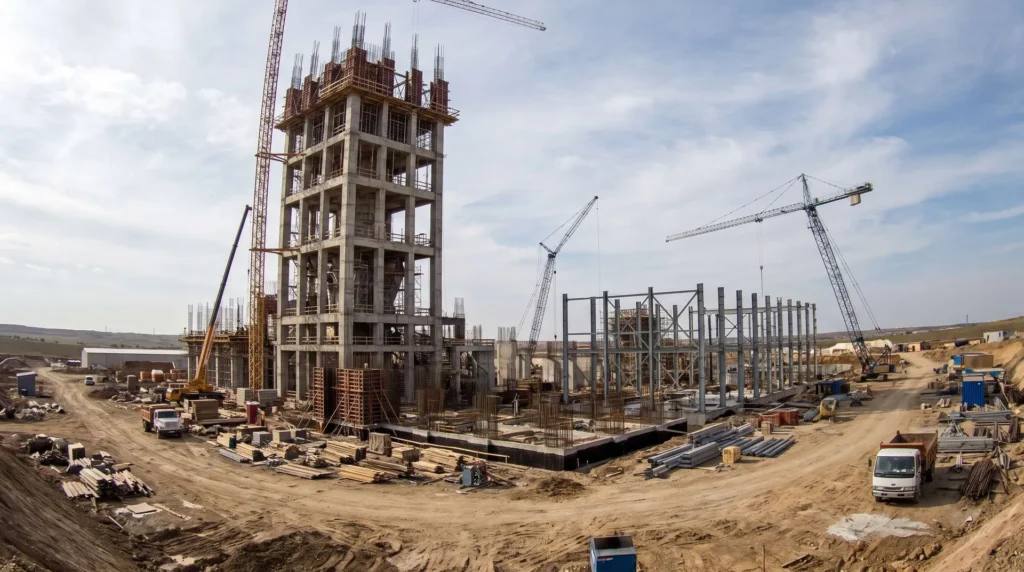

Building a world-scale cement clinker production line in the remote inland savannah of Nigeria carries brutal commercial stakes. The preheater tower is the operational heart of the plant—an 85-meter-tall, heavily braced structural steel tower supporting five stages of massive cyclone vessels, calciner ducts, high-temperature exhaust lines exceeding 400°C, and heavy dynamic machinery like vertical bucket elevators and high-power ID fans. For the EPC construction director, the site anxiety was unrelenting: clinker production lines operate on unforgiving commissioning dates where every week of delayed kiln ignition bleeds hundreds of thousands of dollars in lost market revenue. Worse, the jobsite is hours away from any industrial supply base; if massive steel beams arrived warped or vessel-support bolt holes drifted by even 10 millimeters, the 40-ton cyclone tanks lowered from a 600-ton crawler crane would jam against the structural frame aloft. With no heavy machining shops nearby and crane rentals costing a fortune daily, on-site mistakes would trigger a project standstill.
Shijie Heavy Industry delivered an integrated, high-rigidity structural steel solution engineered specifically for demanding African industrial jobsites. Utilizing 3D laser-tracker spatial trial fits and finite element harmonic resonance modeling, Shijie locked full-height column verticality within ≤ 1/1500 and pre-machined all heavy equipment bearing brackets in-factory. Shipped in phased containerized and breakbulk staging packs matching the crane's hoisting sequence, the massive steel members were erected 100% bolted with zero field torch cutting or hole reaming aloft. Cyclone shells dropped cleanly into place without structural interference, enabling the EPC contractor to top out the preheater tower and hand over for refractory brick lining 22 days ahead of the kiln-firing deadline.
| Location | Inland Industrial Belt, Nigeria (West Africa) |
| Industry | 6,000 TPD Cement Clinker Line Heavy Steelwork |
| Scale | 85m Total Height; ~12,500 Metric Tons Heavy Steel |
| Vessel Load | Dynamic/dead load capacity > 2,800 Tons (Cyclones) |
| Plumbness | Full-height column drift controlled within ≤ 20mm |
| Thermal Resilience | Absorbs 350°C-450°C cyclic flue gas duct expansion |
| Site Rework | 0% (Zero field reaming, zero torch cuts) |
| Coating Spec | Heavy C4-Industrial (Heat & Lime-Dust Resistant) |
| Logistics | Staged flat-rack & bulk staging directly to crane |
| Schedule | Completed 22 Days Ahead of Kiln Ignition Date |

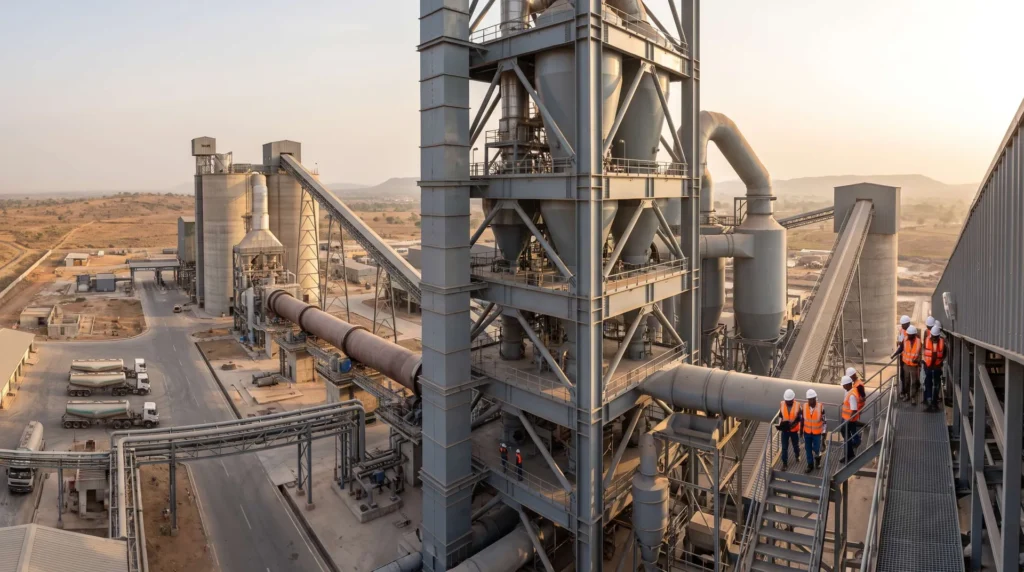

Sub-Millimeter Plumbness for Cyclone Tank Drops
Precision-milled column joints and continuous shop 3D laser-tracker verification ensured beam spacing tolerances remained within ± 2mm, allowing 40-ton cyclone vessels to drop cleanly onto support brackets without binding.

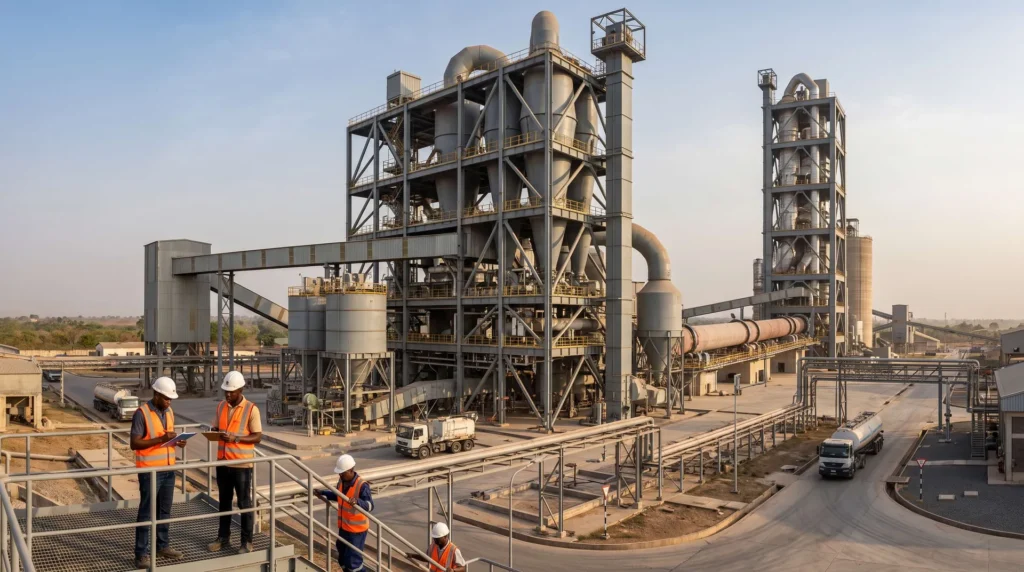

Harmonic Dynamic Vibration Suppression
Stiffened box-column cross-bracing designed via dynamic FEA, shifting the structure’s natural frequency away from induced-draft (ID) fan harmonic zones to prevent cyclic fatigue.

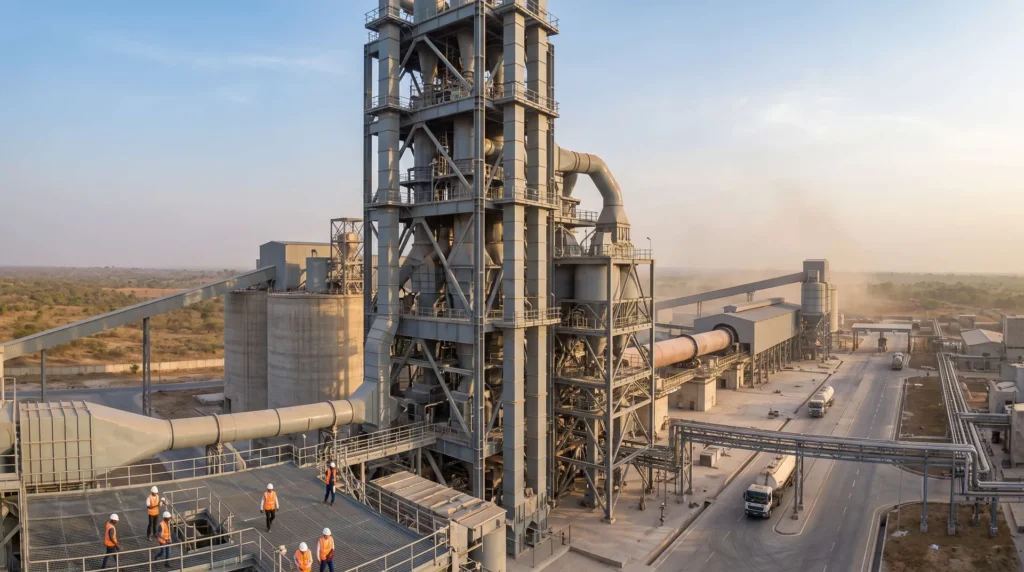

100% Pre-Drilled, Zero-Hot-Work High-Altitude Splices
Heavy wide-flange connections were fully pre-drilled and matched with chamfered guide pins, eliminating dangerous overhead welding and cutting in the West African heat.

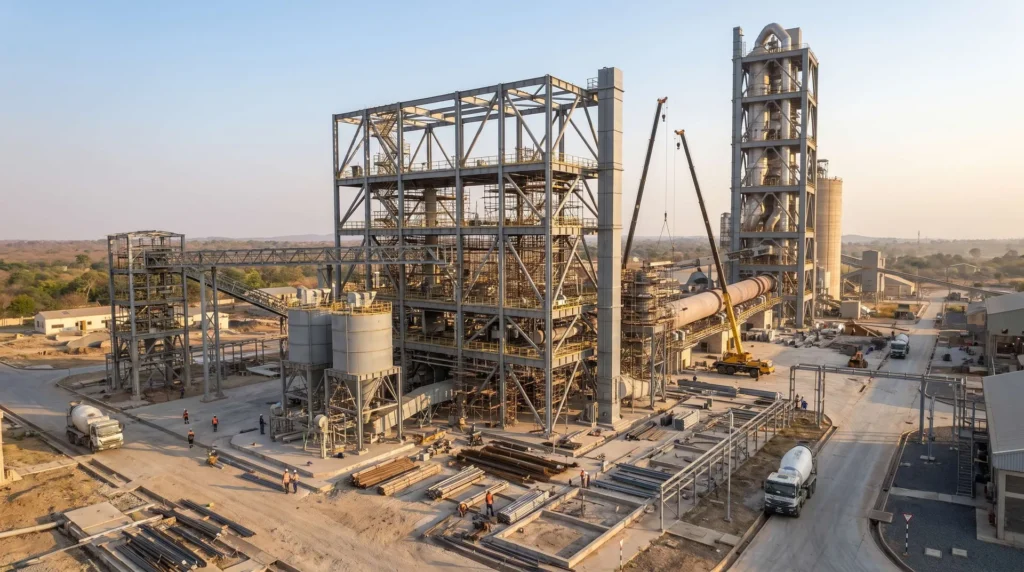

Crane-Synchronized Staging Logistics
Steel members arrived indexed strictly by tower tier levels; flatbeds unloaded directly into the crawler crane’s operating radius, keeping heavy crane rental utilization at maximum efficiency.
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
If the steel tower drifts out of plumb across 85m, heavy cyclone vessels won't fit into the floor grids, stalling the crane.
Conducted sequential shop trial fit-ups in 3-story batches; engineered guide brackets to self-center vessel legs onto load-bearing pads without field prying.
Large cyclic thermal expansion from 400°C gas ducts exerts massive horizontal push, threatening to shear column joints.
Configured low-friction graphite sliding plates and slotted bolt assemblies on horizontal restraint tiers to release thermal creep harmlessly.
Remote Nigerian site lacks tooling and replacement stock; every idle day of a 600t crawler crane costs thousands of dollars.
Tagged every beam with weatherproof heavy metal stamped plates and QR codes; bundled redundant bolt sets and precision shims with each tier delivery.
Building a preheater tower in inland Nigeria is the ultimate stress test. You're erecting steel 85 meters in the air under extreme sun, surrounded by remote bush where you can't buy a single replacement I-beam if something goes wrong. Our 600-ton crawler crane was burning thousands of dollars a day just idling. What truly kept me up at night was the day we dropped the 40-ton cyclone vessels into the frame. If the beam spacing aloft had drifted by even an inch, the vessel would have jammed midway—a catastrophic bottleneck suspended in mid-air. Worse yet, if the framing lacked dynamic stiffness under ID fan operation, cracking refractory bricks would shut down the kiln and cost a fortune.
When Shijie's heavy members arrived at the plant, every tier was bundled and labeled with precision. When our crane swung the first massive cyclone into the steel tower, it lowered straight onto the bearing pads with uniform clearances all around—we didn't even have to touch a crowbar. Across over 12,000 tons of structural steelwork, our rigging crew didn't strike a single arc or touch a cutting torch aloft. Finishing 22 days ahead of our rigid kiln-firing milestone gave us the breathing room we desperately needed for refractory lining. Shijie’s fabrication precision saved this project.
