48,000 sqm Cantilevered Space Frame Stadium Canopy in Qatar: Sub-Millimeter Ball-Joint Precision and Deflection Control
Every solid forged ball joint was processed on multi-axis CNC milling stations, maintaining spatial tapping angles within 0.15 degrees to completely suppress cumulative tolerance drift across the 52m span.
Project Overview

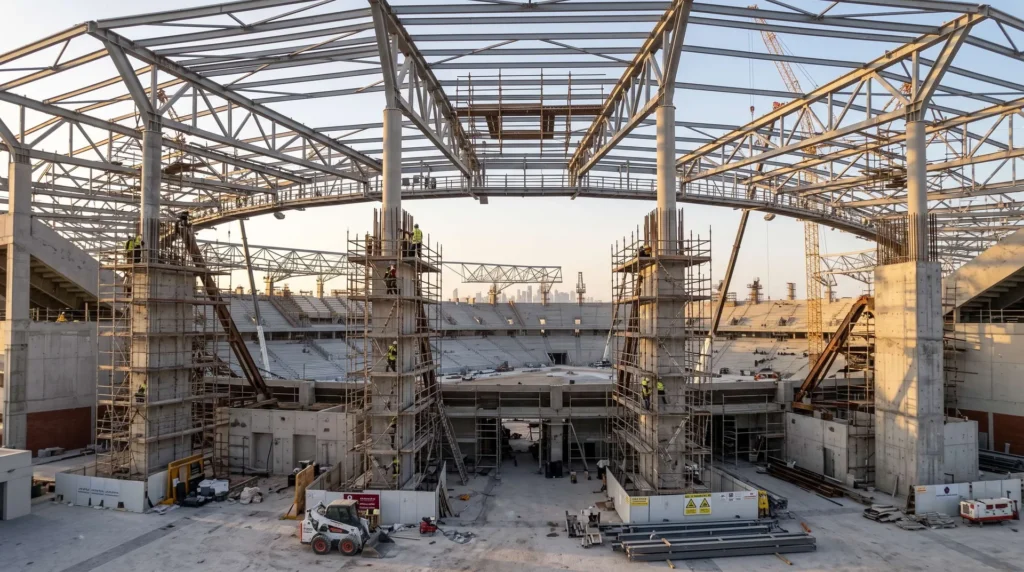

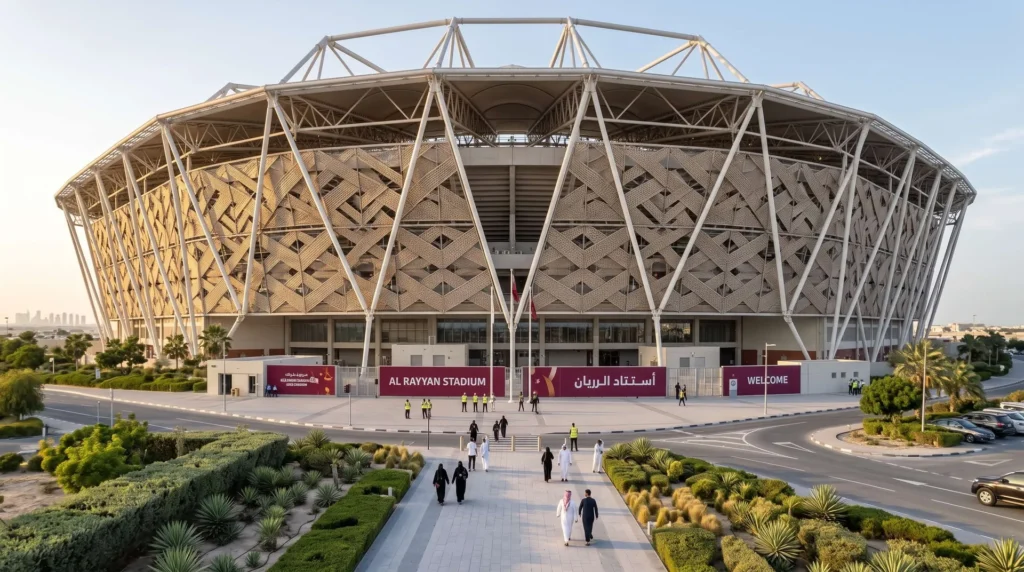

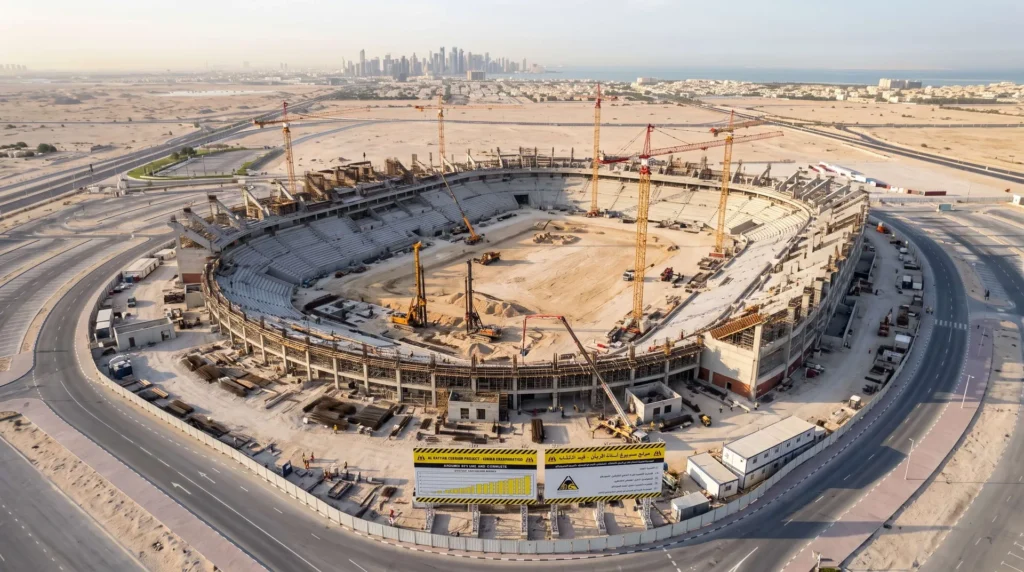

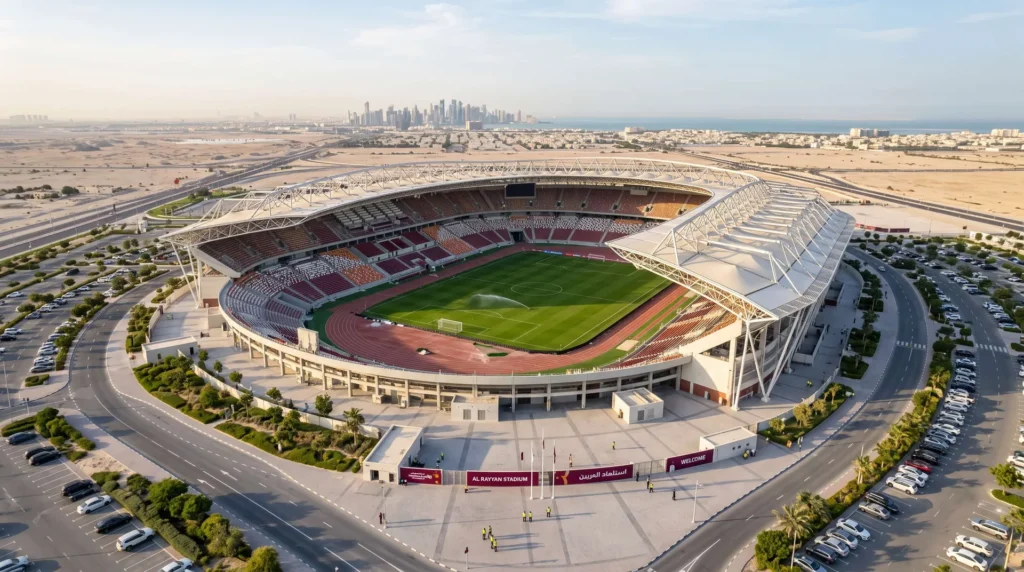

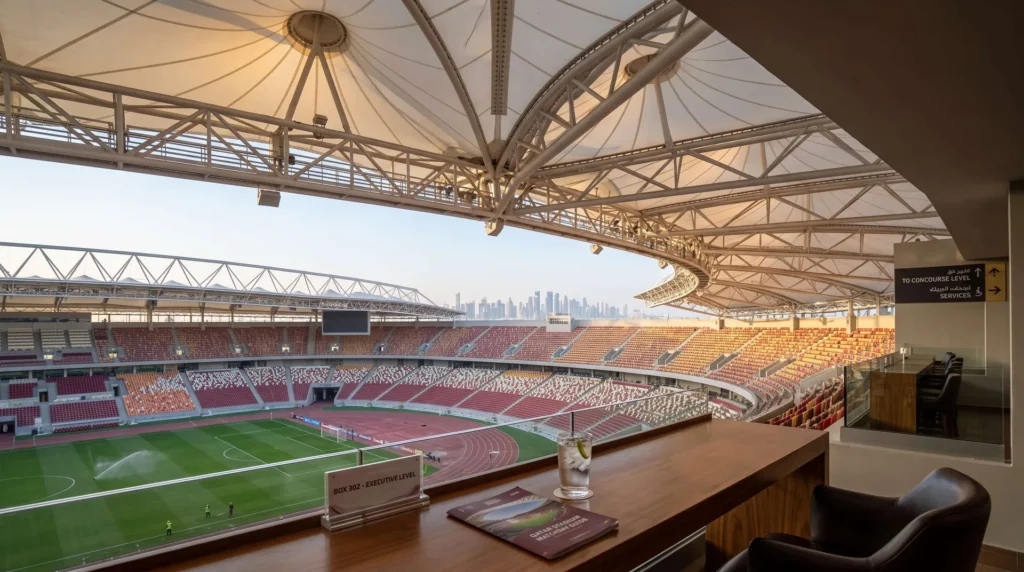

Covering 48,000 square meters to shelter tens of thousands of spectators in Qatar's harsh desert environment, this stadium features a massive double-layer space frame roof cantilevering 52 meters inward over the seating bowl without intermediate columns. In large-scale space grid engineering, the contractor's primary risk lies in cumulative ball-joint tolerance stack-up. Across thousands of tubular members and forged spherical nodes, angle deviations as tiny as 0.2 degrees or millimetric threading errors compound exponentially along a 52-meter cantilever. This stack-up can cause the outer fascia to sag noticeably, throwing off the roof plane and failing strict FIFA and third-party structural sign-offs. Compounding this challenge, the precast concrete stands and finished seating tiers below strictly prohibited on-site welding or torch cutting due to severe fire and slag-damage hazards.
Shijie Heavy Industry provided an end-to-end industrial solution centered on high-precision CNC-machined bolted ball joints and spatial grid pre-camber engineering. Using five-axis machining centers to mill joint angles and executing shop 3D laser coordinate verifications, Shijie eliminated spatial tolerance creep before shipment. Each space frame unit was manufactured with an engineered reverse camber curve matching deadweight deflection models. Transported in indexed component sets, the space grid bays were assembled on ground platforms outside the bowl and hoisted into place by mobile cranes. Every high-strength bolt torqued directly into its spherical node without site modifications, completing the roof 15 days ahead of schedule.
| Location | Coastal-Desert Stadium Corridor, Qatar |
| Industry | Sports Complex & Open-Air Arena Space Frame |
| Scale | 48,000 sqm Canopy; ~8,600 Tons Structural Steel |
| Structural Type | Double-Layer Cantilevered Bolted-Ball Space Grid |
| Cantilever Span | 52-Meter Clear Cantilever (Zero column obstruction) |
| Joint Type | Forged Solid Steel Bolted Spheres & Threaded Sleeves |
| Tolerance | Spherical hole angular accuracy ≤ 0.15°; pitch ≤ 0.5 mm |
| Deflection | Residual tip droop controlled within L/500 (< 95 mm) |
| Hot-Work Rate | 0% Field Hot-Work over seating bowl (100% Bolted) |
| Schedule Advance | Completed 15 Days Ahead of master milestone |
Sub-Millimeter Forged Spherical Joint Accuracy
Every solid forged ball joint was processed on multi-axis CNC milling stations, maintaining spatial tapping angles within 0.15 degrees to completely suppress cumulative tolerance drift across the 52m span.
Non-Linear Deflection & Camber Optimization
Modeled deadweight drop and cyclic desert wind suction in ANSYS, setting reverse pre-camber adjustments into shop member lengths to keep the canopy eaves level and taut after crane release.
Zero-Hot-Work Ground Modular Lifting

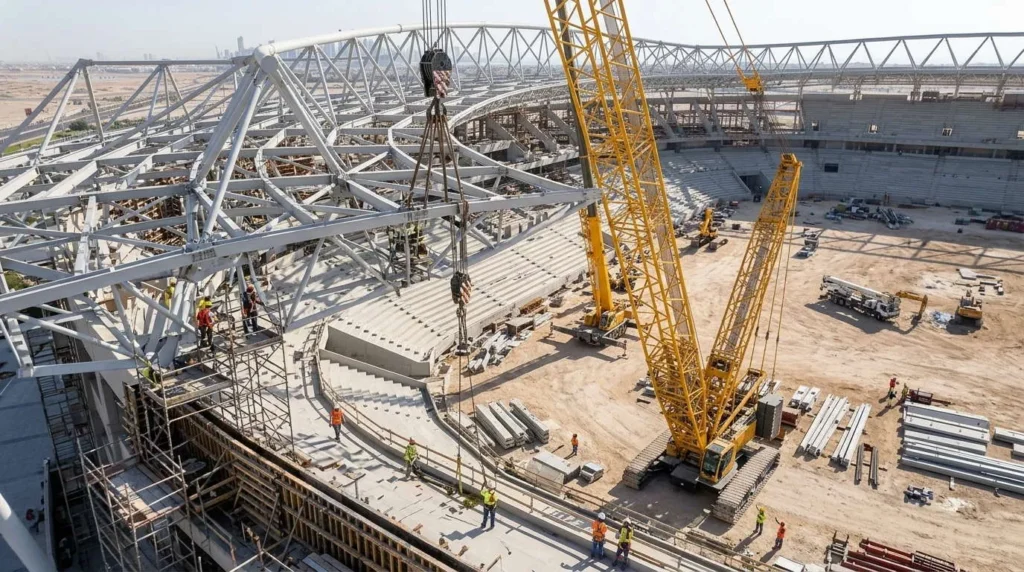

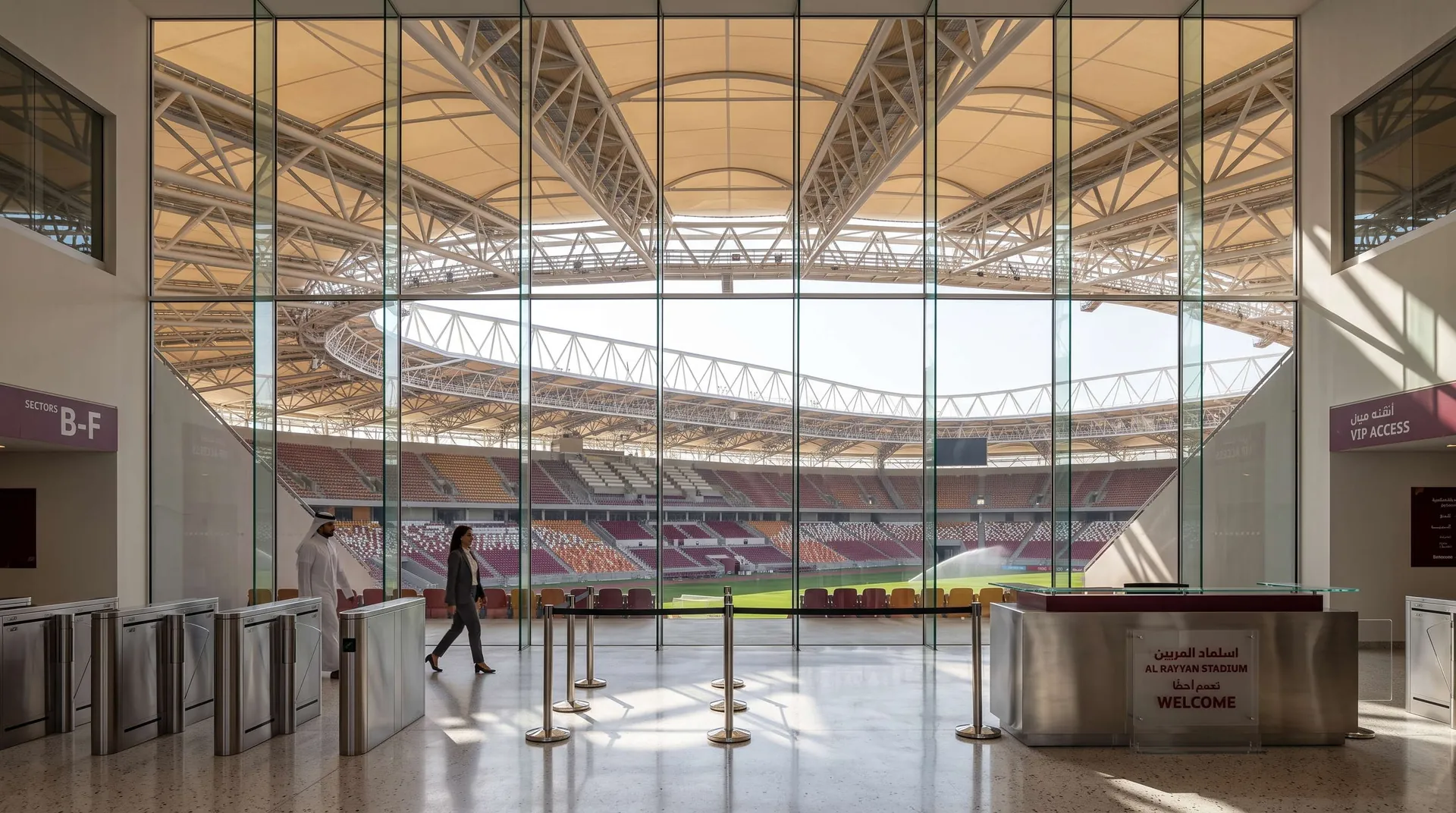

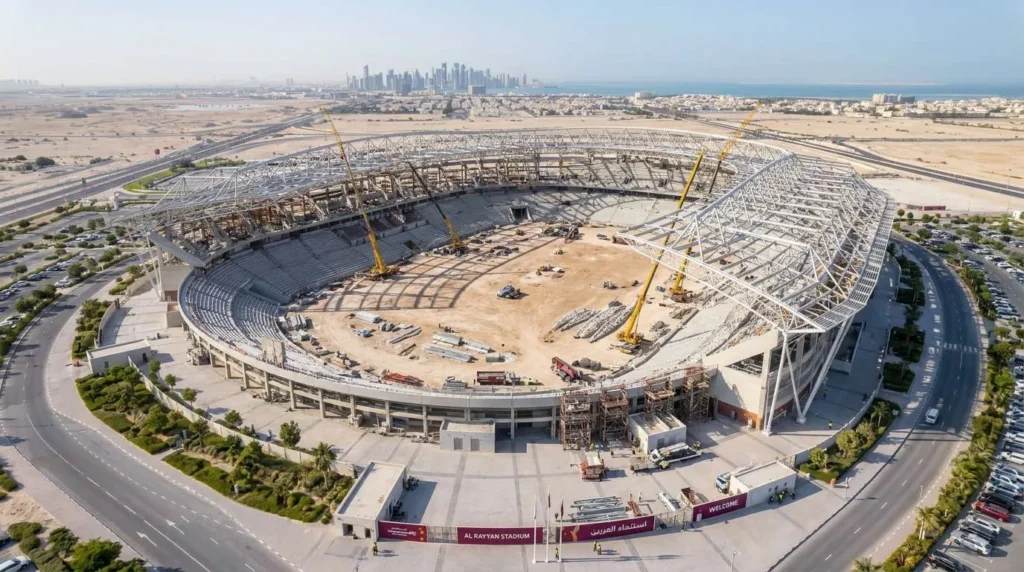

Assembled large spatial grid blocks on exterior ground aprons and swung them into place with heavy cranes, securing every joint mechanically with zero sparks falling onto precast stands below.
Desert C5-M Sealed Anti-Corrosion
Applied heavy-duty polyurethane coating systems and sealed spherical joints with internal elastomeric O-rings, preventing moisture and fine silica sand intrusion into threaded internal cavities.
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
Thousands of interconnected ball joints: tiny angle variations compound down the 52m cantilever, causing noticeable tip sagging and audit failures.
Utilized 5-axis CNC machining centers for ball drilling and verified spatial test grids with 3D laser scanners in-shop, holding cumulative span deviation under 3mm.
Sudden desert squalls generate alternating upward suction and downward loads on lightweight cantilevers, inducing joint fatigue.
Engineered high-ductility 40Cr forged solid balls and Grade 10.9S high-strength bolts, verified under dynamic bi-directional fatigue simulations.
Finished precast stands and VIP seats below prohibit welding or cutting; dropped weld spatter incurs major back-charges and fire risks.
Supplied fully bolt-connected grid modules with chamfered guide sleeves; external crawler cranes lifted sections over rims for immediate pin-locking with zero on-site hot work.
Managing a space frame canopy that cantilevers over 50 meters kept me anxious for months. Anyone in structural engineering knows the harsh reality of space grids: a one-millimeter error at a bolted ball joint turns into inches of droop at the tip of a 52-meter cantilever. With zero interior columns to help, our biggest nightmare was completing the assembly only to watch the outer edge sag—an obvious flaw that would fail third-party inspections immediately. On top of that, the finished precast stands below were already in place; our client strictly banned hot work to protect the concrete.
When Shijie Heavy Industry’s shipment arrived, our QA/QC team scanned the first test bays with total stations. The angular accuracy of their forged ball joints was astonishing. We pre-assembled large grid units on the ground outside the stadium and hoisted them over the bowl in single lifts. The moment the crane load was transferred and temporary supports were released, the cantilever tip settled exactly on our calculated design line—within 5 millimeters of theoretical camber. Across thousands of bolted connections, our crew didn't strike a single arc or touch a cutting torch aloft. Finishing 15 days ahead of schedule proved that Shijie’s space frame engineering is genuinely world-class.
