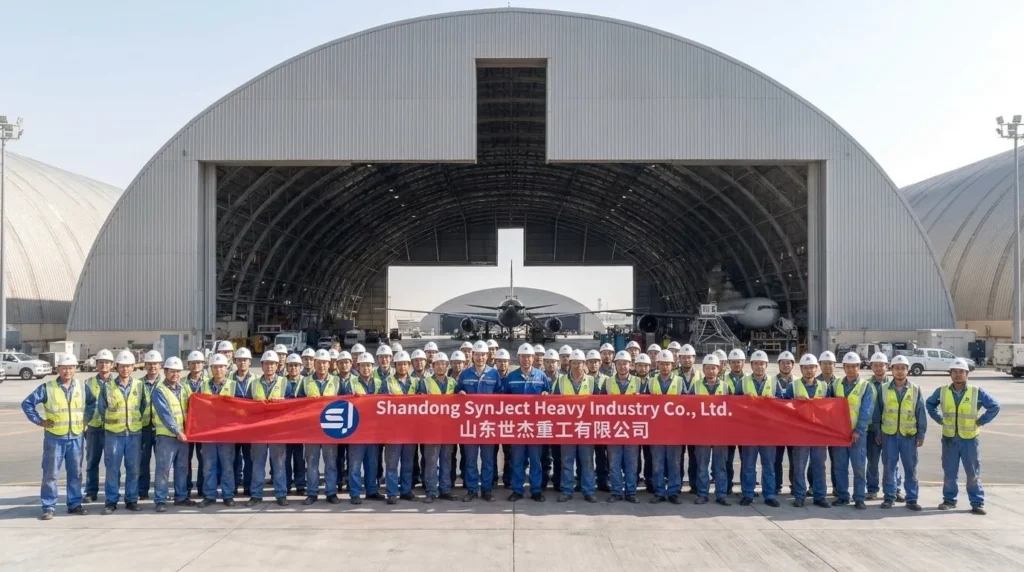

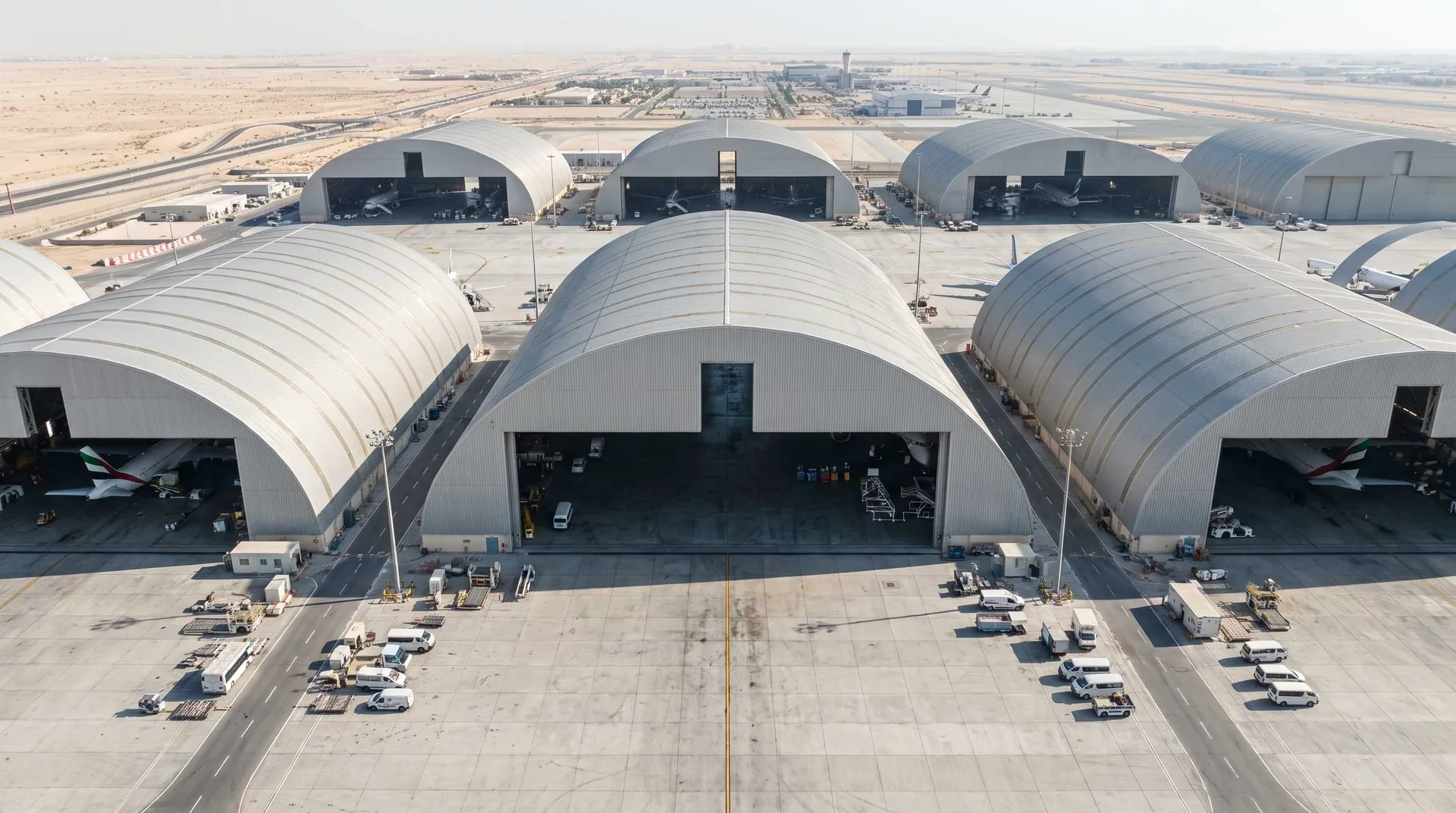

80-Meter Clear Span Aviation Hangar in the Philippines: Engineered for Category 5 Typhoons and High-Seismic Resilience
Engineered strictly to NSCP 2015 Zone 4 requirements, utilizing double-layer space grids to safely distribute intense dynamic wind-uplift pressures from 270 km/h Pacific typhoons.

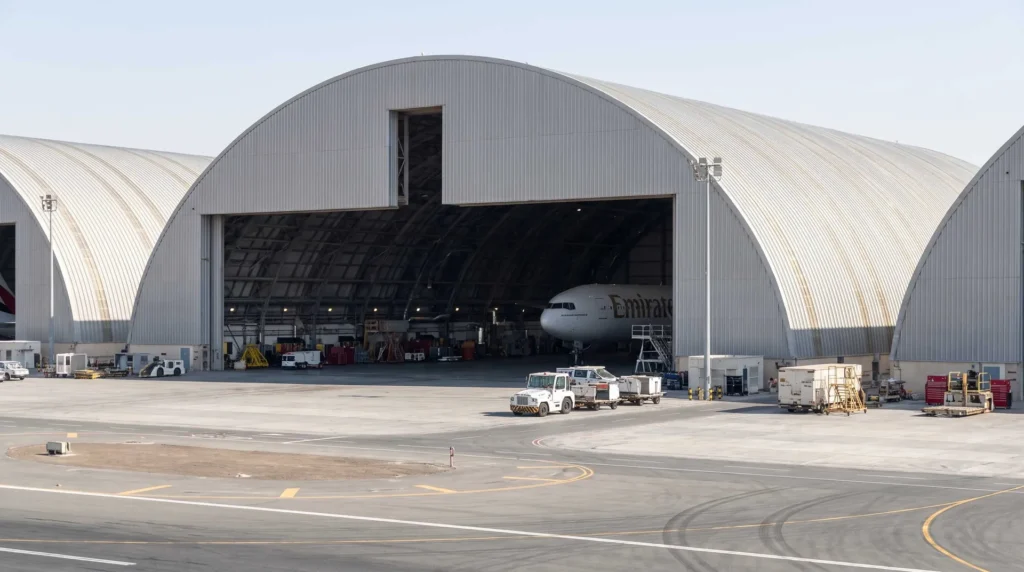

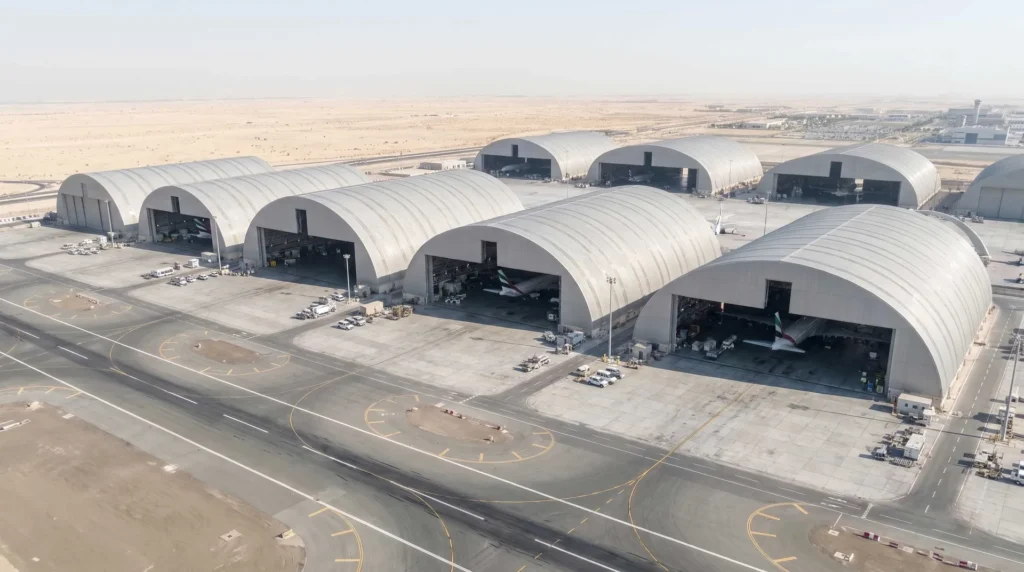

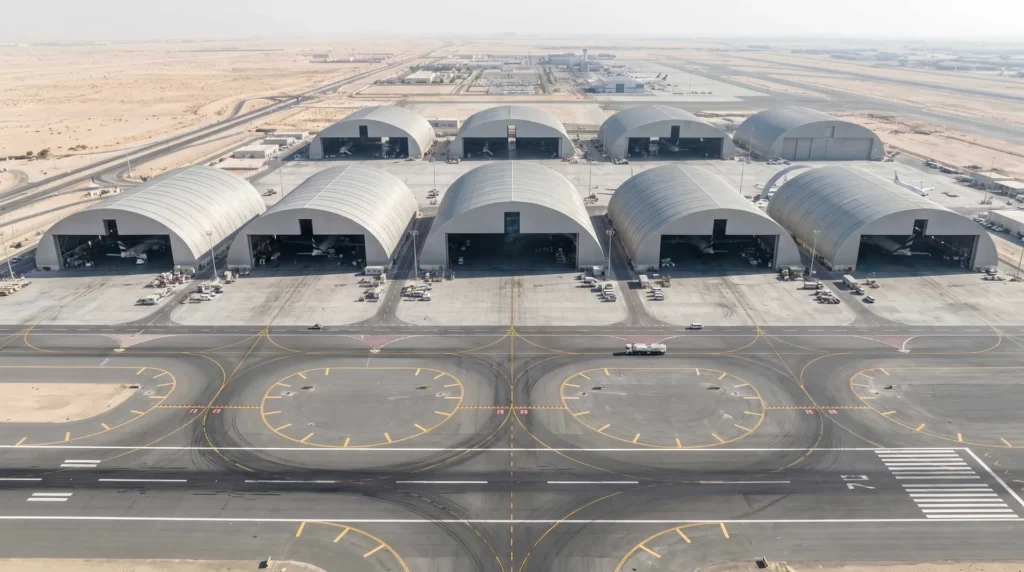

Project Overview
In the aviation infrastructure sector, schedule delays directly trigger millions of dollars in grounded aircraft losses and severe contractual liquidated damages. For this critical commercial aviation MRO hub located in Clark/Manila, the EPC director faced dual challenges: delivering a massive 80-meter column-free space frame hangar for wide-body maintenance on a rigid deadline, while engineering the structure to survive the Western Pacific's most hostile environmental conditions. The Philippines lies directly within the Pacific Typhoon Belt and the Ring of Fire, requiring the structural steelwork to withstand Category 5 super typhoons (basic wind speeds exceeding 270 km/h under NSCP 2015) and high-ductility seismic accelerations (Seismic Zone 4), alongside intense coastal tropical humidity (C4/C5 marine corrosion).
Shijie Heavy Industry recognized that any on-site "torch cutting, hole reaming, or rework" would breach strict aviation specifications and stall erection ahead of the impending monsoon season. Utilizing advanced finite element aerodynamic wind-uplift modeling, shop pre-cambering, and precision CNC-machined bolted ball-joint systems, Shijie delivered fully prefabricated, heavy-galvanized space frame modules directly to Subic/Manila Port strictly on schedule. The entire 80m roof was assembled on the ground and hoisted with absolute "zero-site-modification" precision, de-risking the project schedule and providing a safe haven for wide-body airliners against Pacific storms.
| Location | Clark Freeport Zone / Manila, Philippines |
| Industry | Commercial Aviation MRO Infrastructure |
| Design Codes | NSCP 2015, AISC 360, AWS D1.1, ASCE 7 |
| Clear Span | 80-Meter Column-Free Clear Span |
| Wind Resistance | Designed for Category 5 Typhoons (V_des ≥ 270 km/h) |
| Seismic Zone | NSCP Zone 4 (High Ductility Seismic Response) |
| Site Modification | 0% (Zero field cutting, drilling, or welding) |
| Connection Type | CNC Forged Bolted Ball-Joint Space Frame |
| Corrosion Protection | Heavy Hot-Dip Galvanizing (≥ 85 µm) + Marine Epoxy |
| Payload Capacity | Roof supports multi-point heavy aircraft docking cranes |

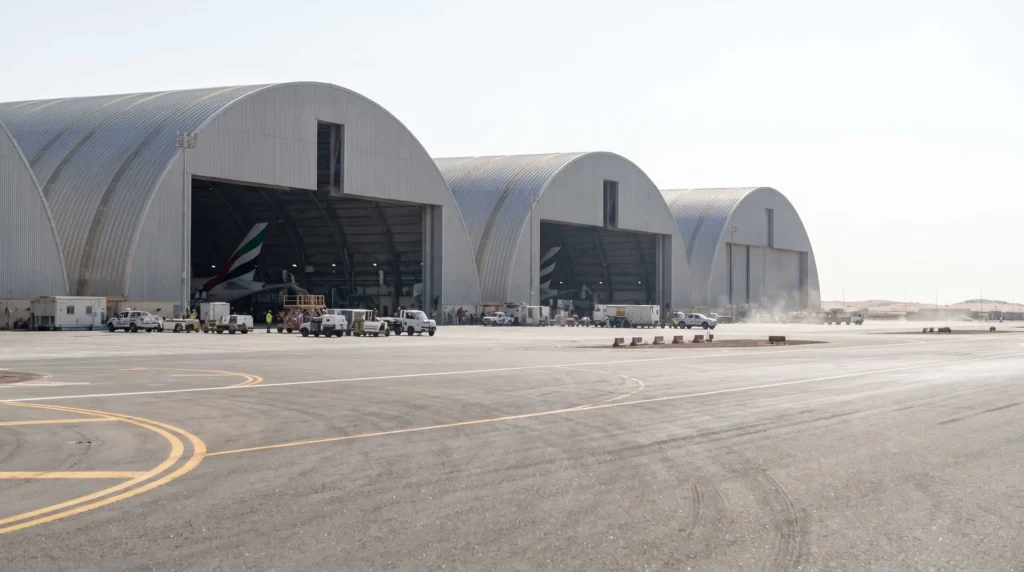

Mega Typhoon & Seismic Resilience
Engineered strictly to NSCP 2015 Zone 4 requirements, utilizing double-layer space grids to safely distribute intense dynamic wind-uplift pressures from 270 km/h Pacific typhoons.

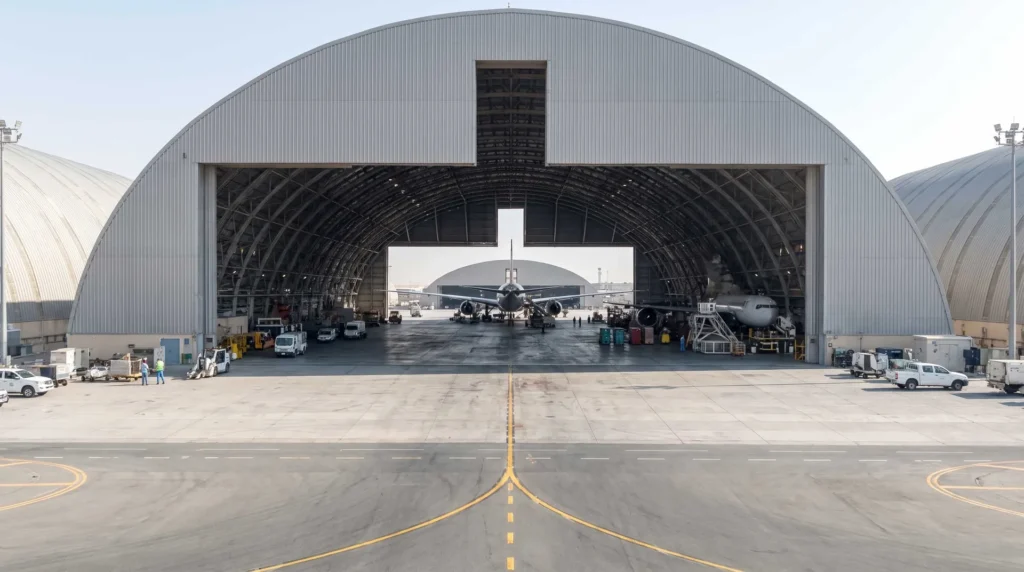

Sub-Millimeter Deflection Control
Advanced reverse-camber engineering pre-compensates for deadweight and heavy overhead docking crane loads, ensuring smooth, jam-free operation of giant sliding hangar doors.

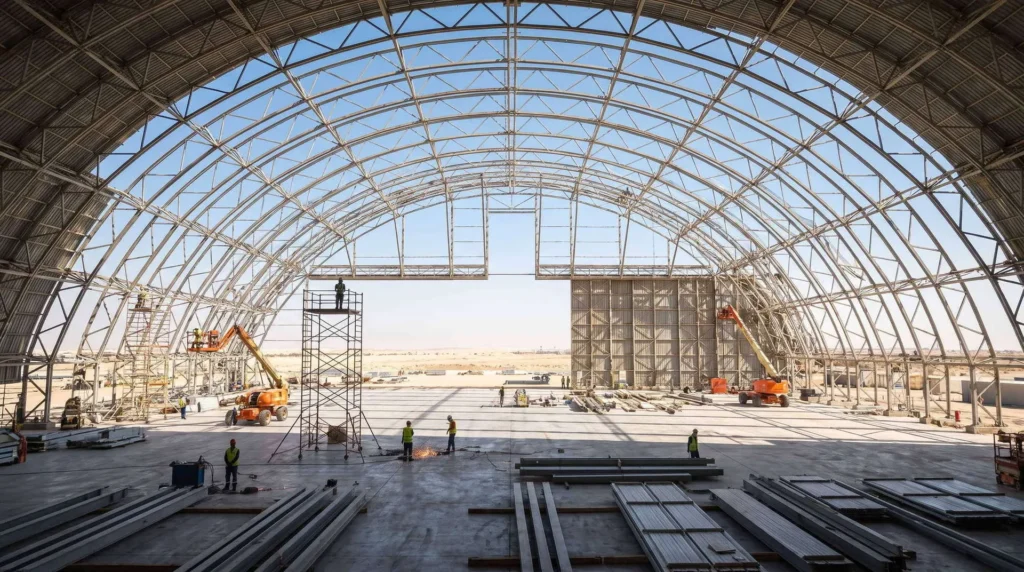

Zero-Rework Bolt Assembly
100% factory CNC-machined bolted ball joints enabled "plug-and-tighten" ground assembly, avoiding tropical rain delays and field-weld rust hazards.
Tropical Marine Corrosion Protection
Duplex protective treatment pairing heavy hot-dip galvanizing with anti-mildew, salt-spray-resistant coatings, ensuring a 30+ year maintenance-free lifecycle in coastal Philippine conditions.
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
Category 5 super typhoons create immense wind-uplift forces that can reverse structural stresses, tearing standard roof trusses.
Utilized high-strength forged ball-joints with bidirectional tension-compression fatigue verification, ensuring seamless load reversals under hurricane turbulence.
Constant tropical humidity and heavy monsoon downpours disrupt field welding and accelerate corrosion on exposed cuts.
Executed 100% pure bolted mechanical connections manufactured in-house, combined with shop-applied ASTM A123 hot-dip galvanizing and sealed node caps.
Heavy roof deadweight across an 80m span causes sag, risking jam-ups on massive sliding hangar doors.
Pre-engineered an upward camber curve into node dimensions based on full-load FEA modeling, perfectly leveling the structure under actual service loads.
In the aviation infrastructure business, time is literally money, and in the Philippines, that timeline is constantly threatened by unpredictable typhoons. A delayed hangar delivery triggers millions in grounded aircraft losses and contract penalties. Constructing an 80-meter column-free span capable of withstanding NSCP Category 5 typhoon winds leaves zero margin for engineering error. We needed a heavy steel partner who could guarantee precision delivery before the monsoon peaked.
Shijie Heavy Industry proved to be the ultimate game-changer. Their space frame packages arrived at the port flawlessly on schedule. More importantly, the fabrication precision was astonishing: our local erection crews assembled the massive 80m grid on the ground and hoisted it with zero cutting, zero hole reaming, and zero site welding. The bolted ball-joint connections engaged perfectly like clockwork. Their pre-cambering design neutralized roof sag completely, allowing our giant sliding hangar doors to glide smoothly with zero binding. Shijie didn't just deliver a high-performance typhoon-proof steel frame; they completely de-risked a multi-million-dollar aviation project.
