45,000 sqm Multi-Tier Precision Electronics Cleanroom Workshop in Vietnam: Micro-Vibration Control, Heavy Inter-Building Skybridge, and Accelerated Clean-Build Handover
Optimized floor beam mass and stiffness through dynamic modal simulations, suppressing dynamic vibration transmissions from rooftop MAU equipment to protect sub-micron chip mounting precision.
Project Overview

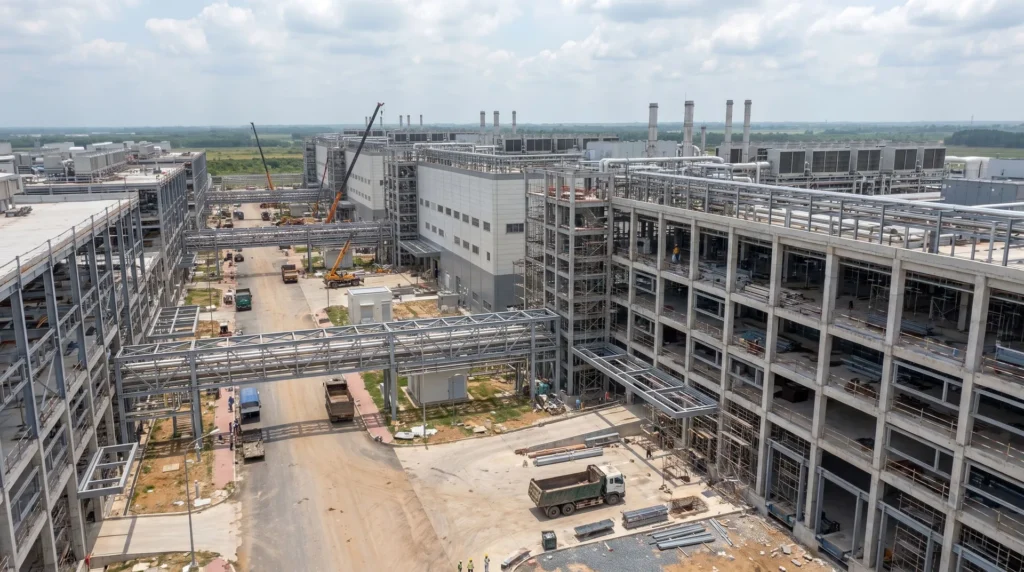

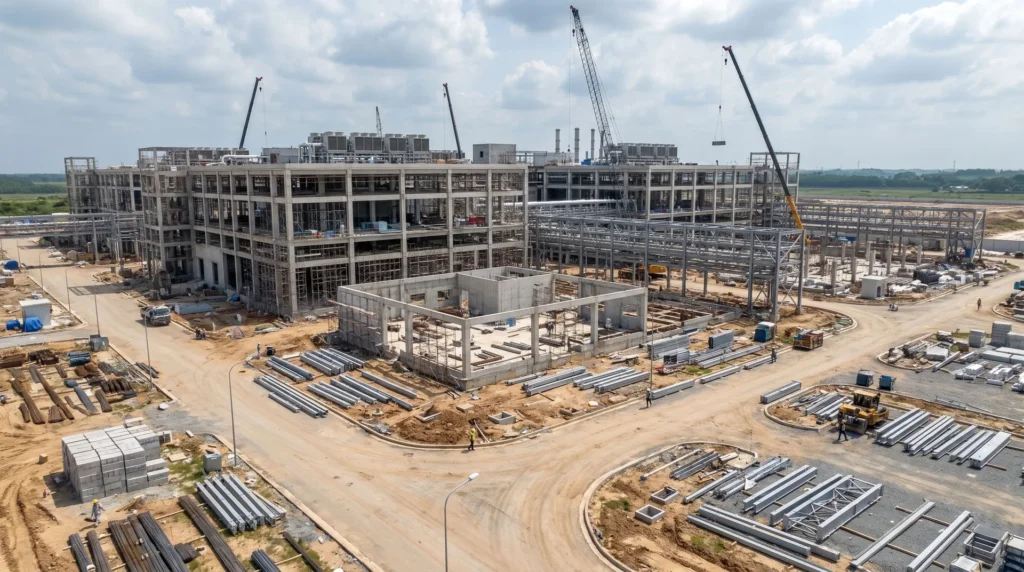

Located in the core high-tech manufacturing corridor of northern Vietnam, this modern industrial manufacturing campus produces advanced display modules and precision semiconductor components. Unlike conventional industrial warehouses, multi-story electronics cleanrooms impose brutal structural demands. The upper floors house heavy, high-velocity Make-up Air Handling Units (MAU) and recirculating fan filter units, while the production floor below operates hyper-sensitive SMT mounters and wire bonders that require stringent micro-vibration performance (VC-A/VC-B criteria).
For the EPC project director, the core anxiety centered on dynamic structural resonance and inter-building logistics connection. If the heavy steel frame lacked adequate stiffness, vibrations from roof chillers and forklift traffic across the elevated 38-meter steel skybridge would transfer into the cleanroom slabs, throwing nanometer-level chip placement out of tolerance and destroying product yield. Furthermore, cleanroom general contractors operate on non-negotiable delivery dates tied to global consumer electronics launch windows; any delay in completing the structural envelope pushes back cleanroom panel installation and HVAC balancing. With clean construction protocols strictly banning overhead torch cutting or grinding dust that contaminates air ducts, there was zero margin for field error.
Shijie Heavy Industry engineered a high-rigidity, vibration-isolated structural steel framework. Utilizing dynamic harmonic finite element analysis, Shijie tuned structural frequencies and engineered rigid composite column-beam moments, locking floor vibration velocity well within tight VC criteria. The heavy multi-tier steel skybridge was shop-fabricated with precision slotted expansion bearings to isolate seismic and thermal drift between adjacent buildings. Delivered in sequenced container lots with cleanroom-grade protective packaging, over 7,200 tons of structural steel went up 100% bolted with zero site cutting or welding. The structural envelope was completed 20 days ahead of the cleanroom certification milestone, ensuring zero yield loss during mass production ramp-up.
| Location | High-Tech Electronics Zone, Vietnam |
| Industry | Multi-Story Precision Electronics Cleanroom & Pipe Rack |
| Scale | 45,000 sqm GFA (~7,200 Metric Tons Heavy Steel) |
| Micro-Vibration | VC-A / VC-B compliant (RMS velocity < 50 μm/s) |
| Skybridge | 38-Meter Heavy Tubular Truss Logistics & Pipe Bridge |
| Floor Loading | Cleanroom operating live load > 15 kN/m² |
| Site Hot-Work | 0% Field Cutting / Reaming (100% Bolted Assemblies) |
| Coating Spec | Anti-Static, Low-VOC High-Build Epoxy Polyurethane |
| Bridge Erection | Single-pick ground-assembled modular tandem lift |
| Schedule Advance | Completed 20 Days Ahead of Cleanroom Handover |
VC-Rated Micro-Vibration Mitigation
Optimized floor beam mass and stiffness through dynamic modal simulations, suppressing dynamic vibration transmissions from rooftop MAU equipment to protect sub-micron chip mounting precision.
38m Decoupled Multi-Tier Logistics Skybridge

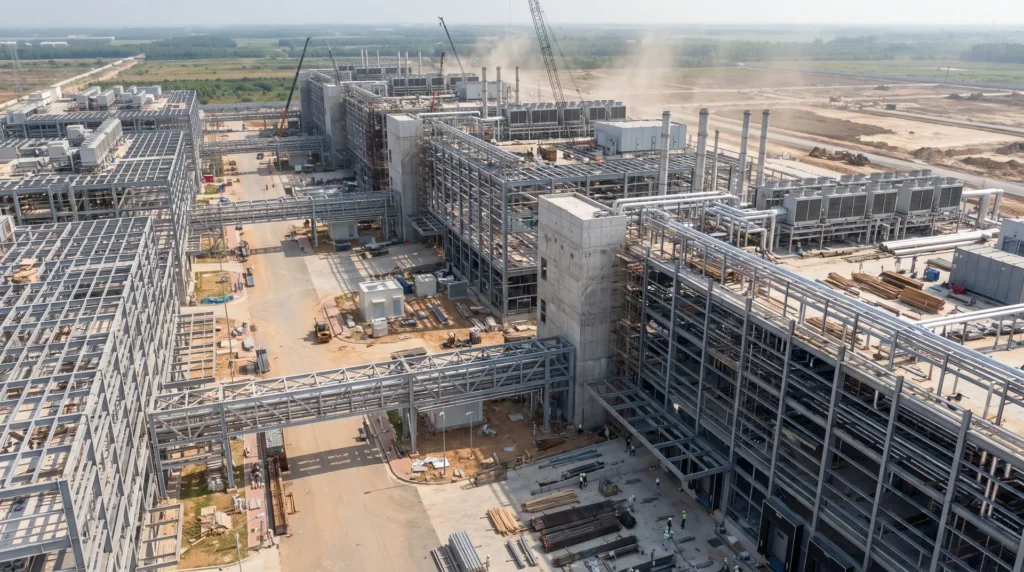

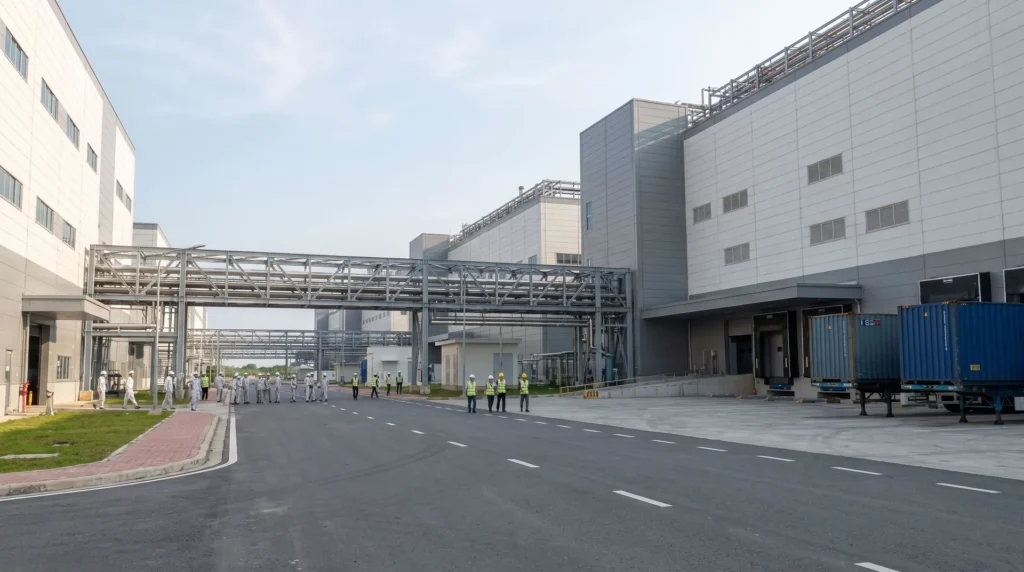

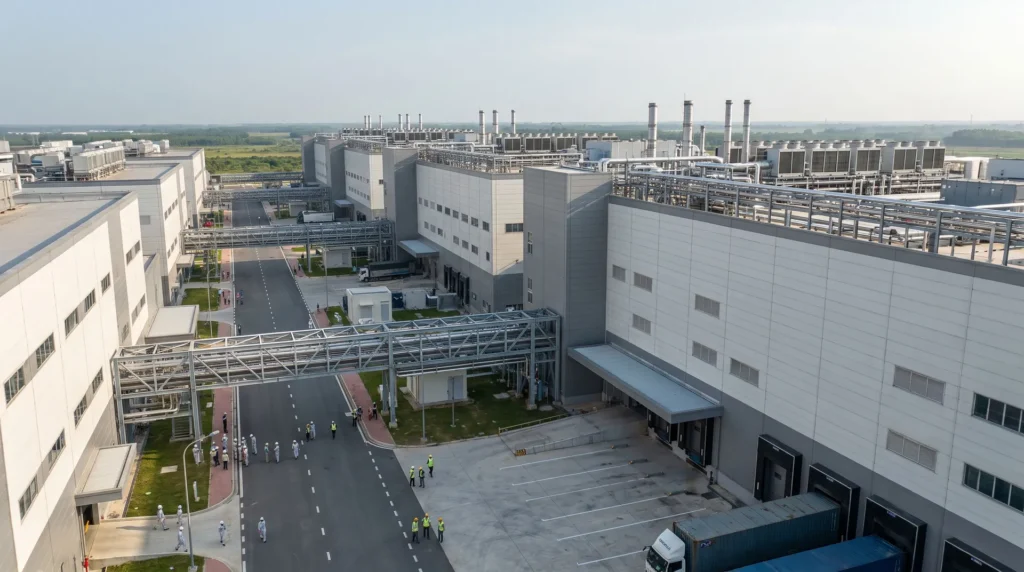

Engineered an enclosed, multi-tier steel truss bridge spanning the facility roadway, incorporating slotted Teflon slide bearings to isolate vibration and thermal movements between adjacent workshop buildings.
Zero-Hot-Work Clean Construction Assembly
Fabricated with high-precision multi-axis CNC drilling lines, allowing heavy steel columns, floor beams, and bracings to bolt together aloft without cutting torches, eliminating fire and dust risks.
Crane-Synchronized Phased Container Logistics
Containerized structural members in bay-by-bay modules, allowing direct hook-lifting off flatbed trailers without site re-handling, perfectly adapting to restricted industrial park space.
Turning Site Challenges into Engineered Certainty
Proven technical interventions to keep your project on spec, on budget, and on schedule
Heavy rooftop air-handling equipment causes dynamic structural micro-vibrations, degrading precision chip placement yields.
Executed ANSYS dynamic harmonic modeling to stiffen framing and tuned cross-girders away from machine resonance zones, adding factory vibration anchor pads.
Erecting a 38m heavy two-story steel skybridge over an active plant road without disrupting ongoing campus logistics.
Modularized the skybridge into a rigid tubular space truss, pre-assembling it on the ground and executing a single-pick overnight tandem crane lift.
Tight consumer electronics launch deadlines: cleanroom contractors cannot tolerate on-site welding dust or structural delays.
CNC-drilled all bolt holes with ± 0.5mm precision and shipped parts in clean weatherproof packaging, achieving 100% bolted field erection with zero cuts.
In a multi-story cleanroom, steel frame resonance ruins SMT chip placement yields instantly. Shijie solved it: our vibration tests beat VC limits by 30% even with roof air handlers at full blast. The 38m skybridge hoisted overnight in a single pick, and 7,200 tons went up 100% bolted with zero torch cuts. Delivering 20 days early secured our mass production launch.
